Review of Seagate 2TB Barracuda XT SATA6 Desktop Hard Drive ST32000641AS

galaxy s3 covers

xt1

The majority of PC users out there have regular mechanical hard drives in their computers, it’s going to be a long time before SSDs replace them. Hard drive companies like Seagate know this and they’re not going to stop improving the technology, with the introduction of the new SATA 3 interface we’re starting to see hard drives to go with it. The first company out the door with one was Seagate, and it’s a big one coming in at 2 Terabytes in size called the Barracuda XT, and that’s what I’ve got for review today. The Barracuda XT is not only the first SATA 3 capable drive but it’s one of the fastest on the market today even with the SATA 2 interface. I’ve put the Barracuda XT up against three other hard drive including the Western Digital Caviar Black, a Hitachi and one from Samsung. So read on to learn about a drive that you’ll want to if you’re thinking of upgrading your system…

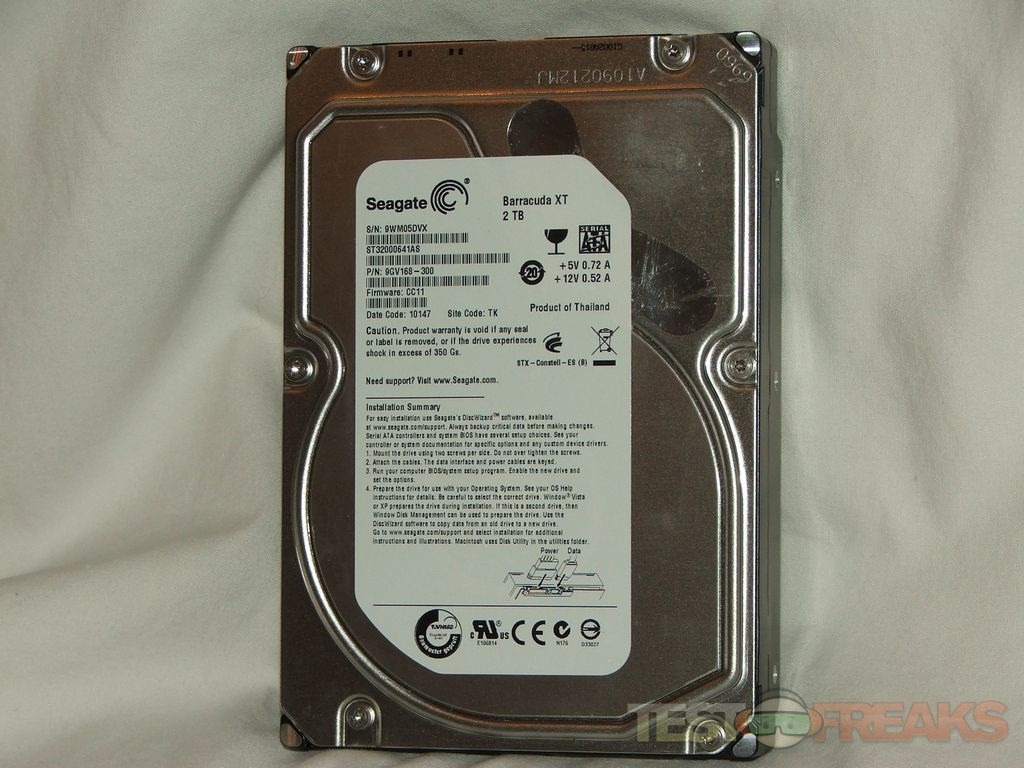

The drive doesn’t look special, it’ looks just like any other hard drive really.

xt1 xt2 xt3

Specifications:

Barracuda XT Desktop Hard Drive

Key Features and Benefits:
* A massive 2-TB drive capacity provides plenty of room for downloading today‘s space-hungry PC games or up to 45 hours of 1080i, HD-DVCPRO-encoded, high-

definition video.

* The 7200-RPM performance platform complements high capacity, delivering a power combination of extreme storage and top-end desktop performance.
* A 64-MB cache optimizes burst performance and reduces data throughput bottlenecks.
* The SATA 6Gb/s interface enables the use of the industry‘s newest and fastest hard drive controllers while providing backward compatibility to legacy SATA

1.5Gb/s or 3Gb/s systems.
* Configurable with Seagate SeaTools software—Users can optimize the drive configuration and tune for capacity or performance for the ultimate in customer

choice and control.

Best-Fit Applications:
* High-performance PC gaming systems
* High-definition video editing and production systems
* Home servers and workstations
* Desktop RAID
* FireWire 800- or eSATA-enabled external storage devices

Specifications:
Model Number: ST32000641AS
Interface: SATA 6Gb/s
Cache: 64MB
Capacity: 2TB
Areal density (avg): 347Gb/in2
Guaranteed Sectors: 3,907,029,168

PHYSICAL:
Height: 26.1mm (1.028 in)
Width: 101.6mm (4.0 in)
Length: 146.99mm (5.787 in)
Weight (typical): 700g (1.543 lb)

PERFORMANCE:
Spindle Speed: 7200 RPM
Sustained data transfer rate: 138Mb/s
Average latency: 4.16ms
Random read seek time: 8.5ms
Random write seek time: 9.5ms
I/O data transfer rate: 600MB/s
Unrecoverable read errors: 1 in 1014

POWER:
12V start max current: 2.8A
Average idle power: 6.39W
Average operating power: 9.23W

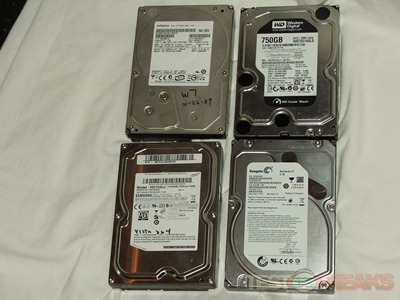

The drive I’m comparing to the Seagate Barracuda XT are:

Hitachi Deskstar 7K1000.B 1TB Drive –7200RPM – 16MB

Samsung HD103UJ 1TB  -7200RPM – 32MB

Western Digital Caviar Black 750GB – 7200RPM – 32MB

xt4

The last review I did was of the ASUS USB 3.0 SATA 3 combo card so that’s what I used with the Barracuda XT drive, and I decided to toss the others on the SATA 3 interface just to see.

I also ran all of the tests on the regular SATA 2 interface as well just to see the differences.

We’ll start off with the SATA 2 interface tests and ATTO Disk BenchMark.

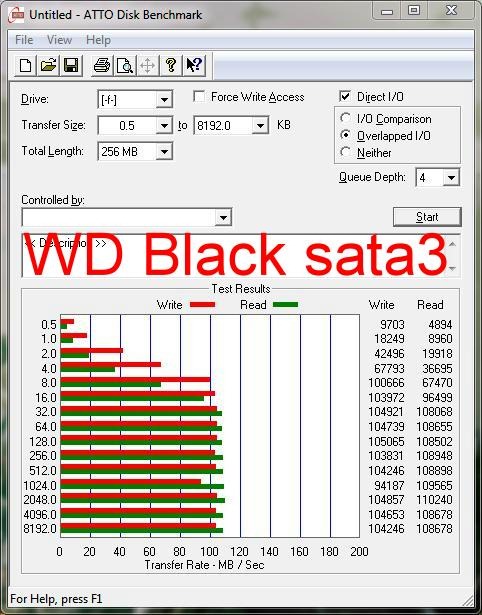

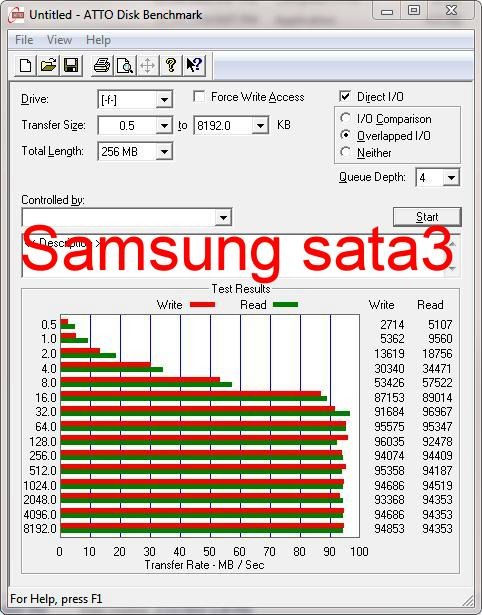

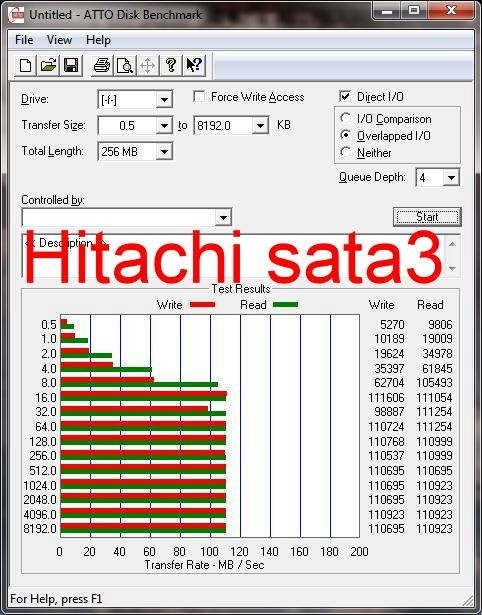

atto hitachi sata3 atto samsung sata3 atto WD Black sata3 atto xt sata3

As you can see the new Barracuda XT is a very fast drive, the Caviar Black is no match for it.

Here’s the testing with the SATA 3 interface and ATTO:

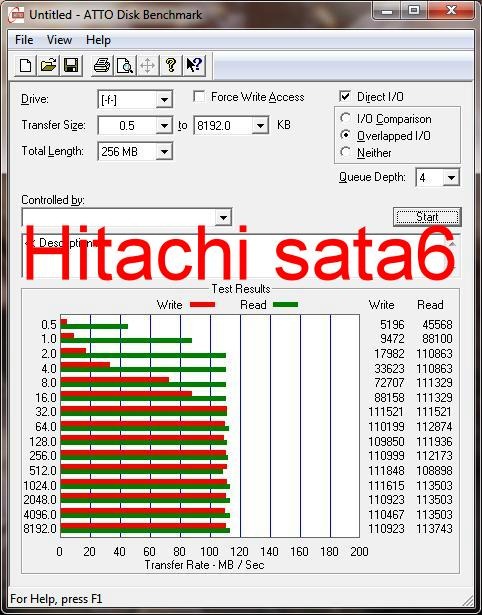

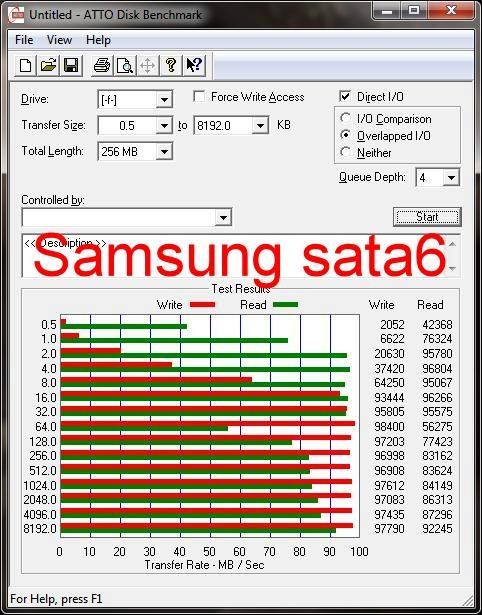

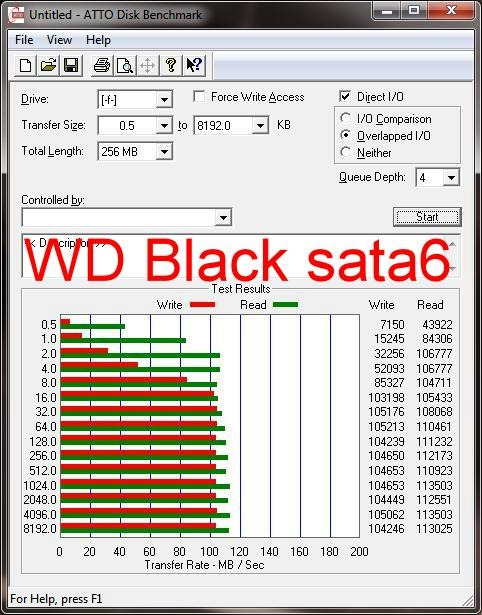

atto hitachi sata6 atto samsung sata6 atto WD Black sata6 atto xt sata6

We actually got a slight increase, but not much really when using the SATA 2 drives on the SATA 3 interface.

Here’s the Barracuda XT on both the SATA 2 and SATA 3 interfaces again for a better comparison:

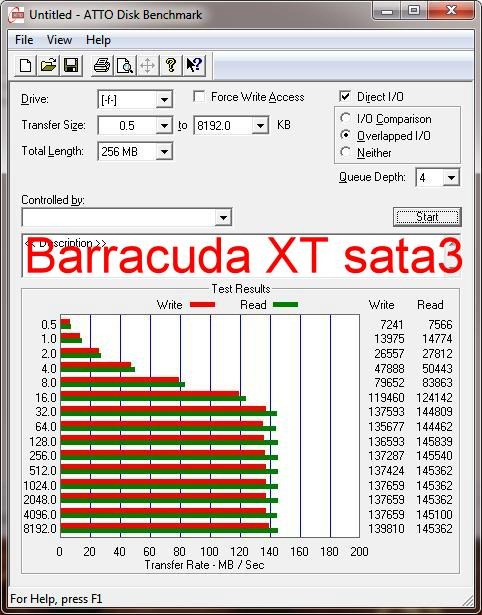

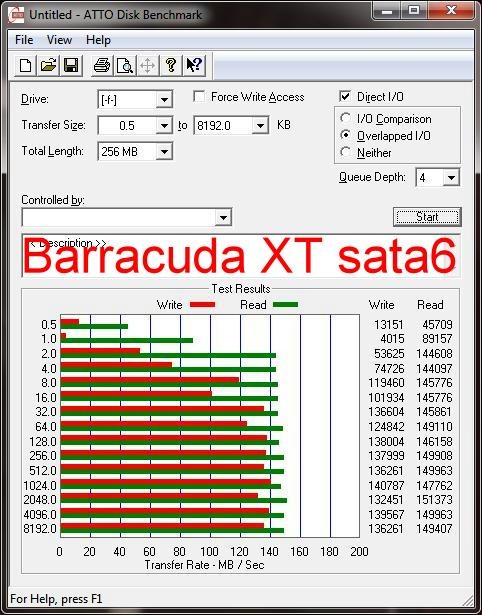

atto xt sata3 atto xt sata6

Going from the SATA 2 to the SATA 3 there is an increase overall as you can see from the testing, but the speed overall isn’t really that different, just a slight bit faster with the SATA 3 interface.

Let’s jump to SiSoft Sandra 2010.

First up is the Physical Disks test:

Benchmark hard disks (i.e. the disk itself, not the file system).

Drive Index: is a composite figure representing an overall performance rating based on the highest read or write speed across the whole disk. Thus the higher the better.

Access Time: is the average time to read a random sector on the disk, analogous to latency response time. Thus the lower the better.

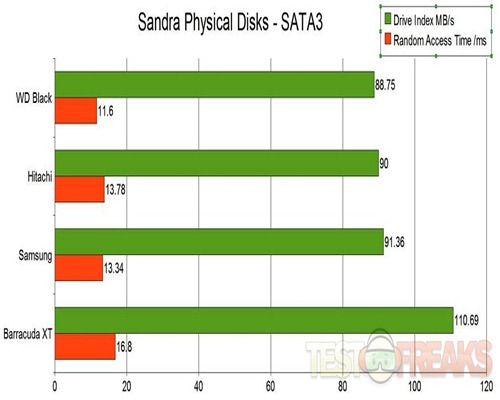

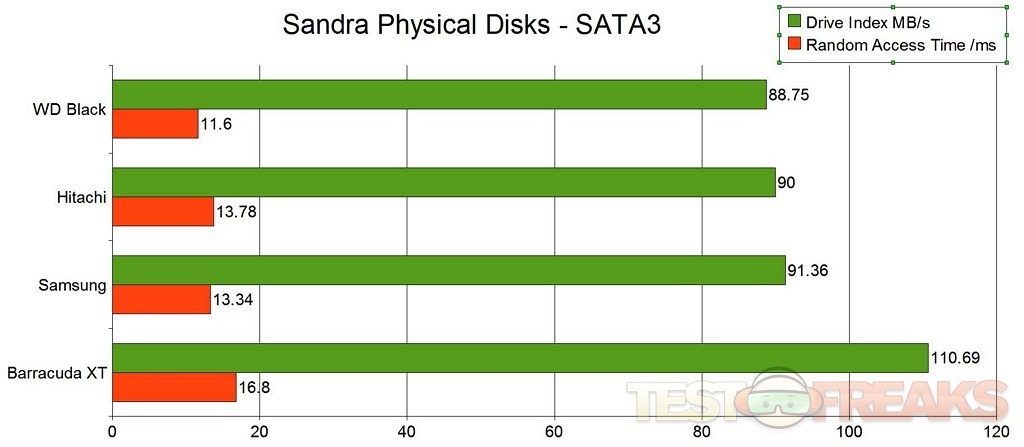

physical disks sata3

Again the Barracuda XT is the fastest of the bunch of drives I’ve got on the SATA 2 or SATA 3Gbps interface.

Here’s the same test on the SATA 6GBps interface:

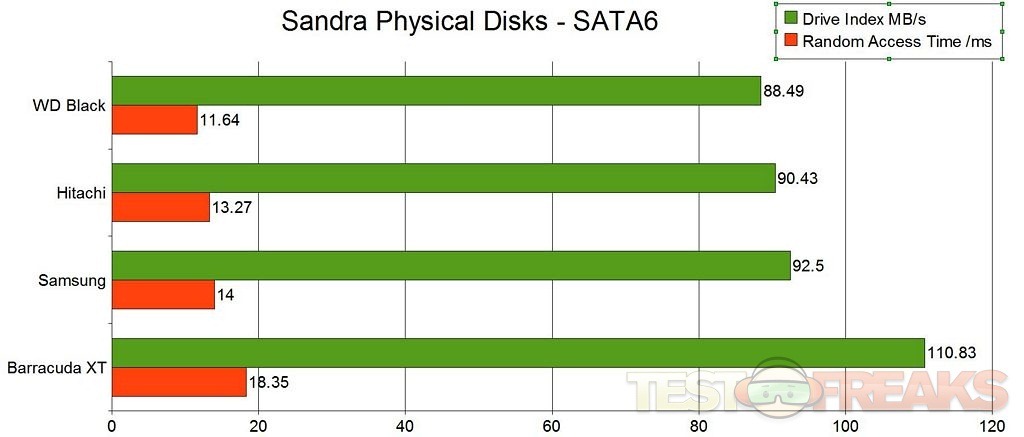

physical disks sata6

Again here there’s really not much difference at all when going to the new interface…

I also ran the SiSoft Sandra File Systems Test as well.

Benchmark mounted file systems (i.e. volumes)

This is not the raw disk performance that other benchmarks test – but the speed of the volume itself that depends on many more factors like file system, operating system cache, position on disk, etc. Thus this is the performance you get at the file system level.

Drive Index:
Results Interpretation : Higher index values are better.
Random Access Time :
Results Interpretation : Lower index values are better.

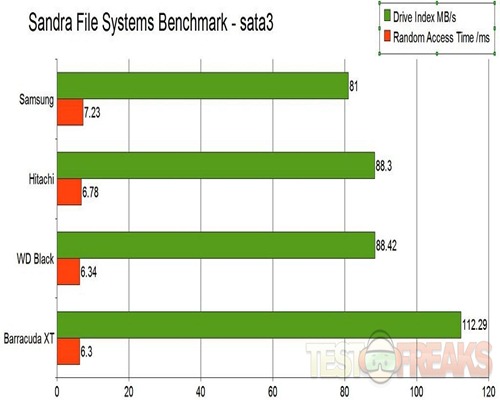

file systems sata3

The Barracuda XT is a fast drive, there’s no doubt about that.

Does the new SATA 3 interface actually make a difference?

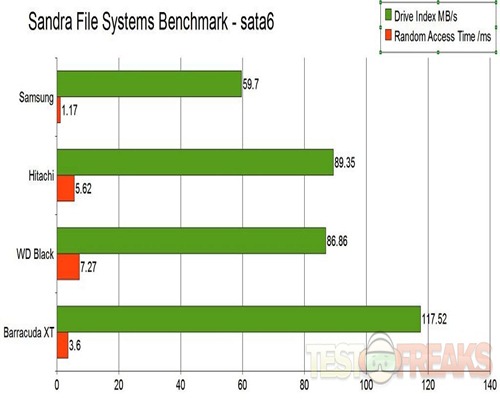

file systems sata6

There’s a very slight difference when going from SATA 2 to SATA 3, but the Random Access time is cut by about half.

There’s no doubt the XT is a fast drive, one of the fastest, if not the fastest out there today.

Right now is it really worth it to jump on with the new SATA interface? Probably not as there just doesn’t seem to be much value in it in terms of speed increase really.

The Seagate Barracuda XT Drive though is worth it as it’s fast.

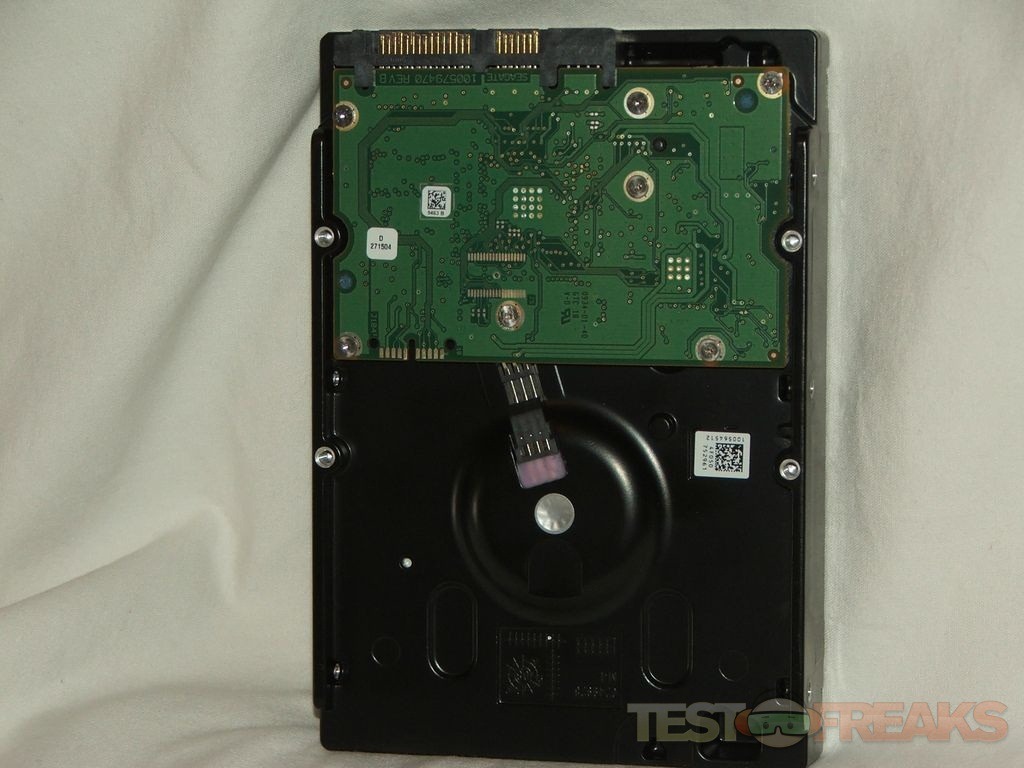

xt1 xt2

Conclusion:

SATA 6 or SATA 3 or whatever you want to call it is a new technology and at this point it’s not that much faster than the SATA 2 interface. The new Seagate Barracuda XT though is a different story, this drive is fast, probably the fastest 7200RPM drive on the market today and I’m sure it will give the 10K RPM drives a run for their money as well.

Moving to the new SATA interface though is rather pointless I would think, as with any technology as time passes it will improve, at least that’s what we hope for.

The new Seagate Barracuda XT drive is well worth it I think, if you’re looking for a large capacity, fast hard drive then this is the one you’ll want to get.

10 EDITOR5

Pros:
+Very fast drive
+Large capacity
+New SATA 3 interface

Cons:
-SATA 6G Deowsn’t make much difference really

Grades:
Overall score-10-10
Design score-10-10
Performance score-10-10

This product was given to technogog for review by the company for review purposes only, and is not considered by us as payment for the review, we do not, and never will, accept payment from companies to review their products. To learn more about our review policy please visit this page HERE.

  • F.A.

    Nice Review!

  • EW

    Nice review, but next time can you please all the Disk Benchmarks on the same scale so that it is easy to compare them? At a glance (without carefully looking at the transfer rate legend at the bottom), the attosamsungsata3_thumb.jpg looks like it shows much better performance than attoxtsata3_thumb.jpg. Thanks.

  • krizia suero

    NICE REVIEW!!!!!!!!!!!!!!!!!!!!!!!!!!! ITS AWESOME:):):):):):):)

  • Daniel

    you forgot to comment about temperature, noise and vibration. Please
    complete the review with these data.

  • marc

    Can you run a comparison of an OCZ SSD on the SATA2 vs SATA3 interface?

  • hoolala

    just want to repeat what Daniel says:
    April 2, 2010 at 2:38 am

    you forgot to comment about temperature, noise and vibration. Please
    complete the review with these data.

    and i think they are also very important factors to a hard drive, don’t you think?

    anyway, you are a great reviewer!!! kowtau to you!!

  • Valdi

    Just wanted to say i’ve owned one of these drives now since March, 2010, i have yet to have any problems what so ever with it. If mounted properly the noise and vibrations are almost silent. As far as temperature goes though, i’ve noticed this sucker runs pretty hot, i haven’t got an actual reading yet but its up there for sure, you don’t want to be touching the sides with your fingers even after a few mins of shutdown. I have just recently added the U3S6 expansion card to get the full 6Gb/s or so called :p anyway, it has increased somewhat but it took awhile for my system to get comfortable with it. only things i would say if your getting this drive is try to buy an extra fan or something to go on or near the drive, keep it abit cooler and posibly increase its performance.

    P6t7 WS Super Computer
    Coolmaster 1250 W PSU
    i7 975 3.33mhz
    6GB G-Skill Perfect Storm Series DDR3-2000
    XFX GTX 285
    U3S6 USB3.0 SATA3 6.0GB/s
    Seagate Baracuda XT 2TB 6.0GB/s
    Raven II by Silverstone CEB
    Windows 7 Ultimate 64x

  • filip007

    I hope that you use AHCI supported and enabled controller in all this tests…ICH9R,ICH10R,ICH11R.

  • http://xcelplus.com.au Michael Czajka

    Basically all this review is saying is that this drive is not saturating the SATA6 interface.

    However it’s conclusion that there’s no point in buying a SATA6 interface does not make sense.

    The SATA3 interface is roughly maxed out. The SATA6 interface on the other hand has heaps of head room.

    Here’s another test which has pointed out the differences a bit better:

    http://features.techworld.com/storage/3220707/in-depth-sata-6-gbits-sec/

    The real challenge with SATA6 is to saturate the interface. SSD’s for example might do much better… although I’m sure that the drive makers will soon step up to the mark. In the meantime who wants to be left with an old interface if they can have a new one?

    :-)

  • Jortijn

    Thanks for the great tests

  • Milesharris

    Great tests? He keeps saying the disks are not much faster on the SATA6 interface than they were on the SATA3. Of course they’re not. They can’t shift data fast enough to saturate SATA3, so they’re not going to go any faster on SATA6 are they? SATA6 doesn’t make your hard drive go faster. It’s pretty much irrelevant as far as hard drives go. It’s for SSDs. Put an OCZ Vertex 3 on a SATA6 port and see if it goes faster than it does on SATA3. D’oh!
