Review of NewerTech 7 Port USB 2.0 Hub with 3.5 Amp Power Supply

Depending on the type of computer you use, a USB hub may not be a luxury but a necessity. For laptop and Apple Mac users USB ports can become full rather quickly. A well-designed USB hub can provide additional ports while only occupying one USB port on the host machine. For instance most iMacs have only three USB ports located on the back of the machine which is usually too few and also a pain to access.

These ports can be tied up quickly with a hard drive used as a Time Machine backup, an iPod/iPhone charging cable and a printer. This means attaching additional USB-based devices requires reaching around back of the iMac and removing one of the connected devices and plugging in the new one. A royal pain in the you know what for most folks.

One way to remedy this is to attach a USB hub. The folks from OWC/NewerTechnology were kind enough to send over their 7 port USB 2.0 Hub with 3.5 amp power supply for review. Each port has a full 500 mA per port meaning devices such as scanners, optical drives, external drives, digital cameras and external drives can be simultaneously connected to your PC/Mac via the Hub.

The Hub features USB 2.0 speeds of up to 60 MB/S and is backwards compatible with USB 1.1 as well as working with USB 3.0 devices. The Hub can daisy chain up 127 USB devices using additional hubs.

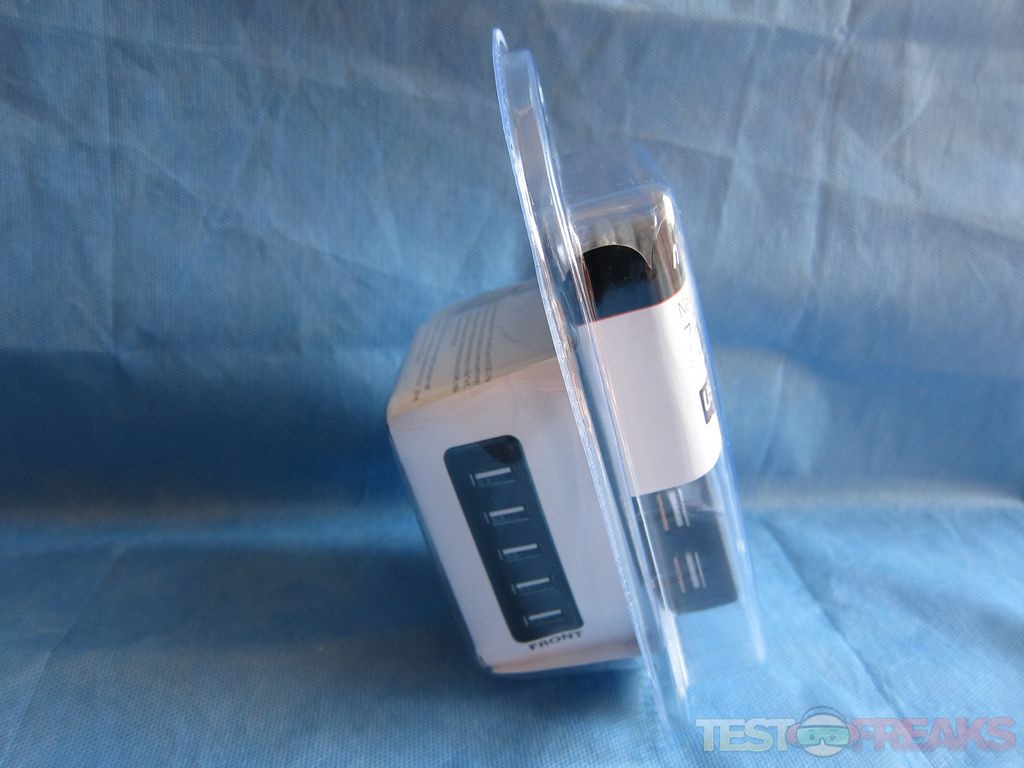

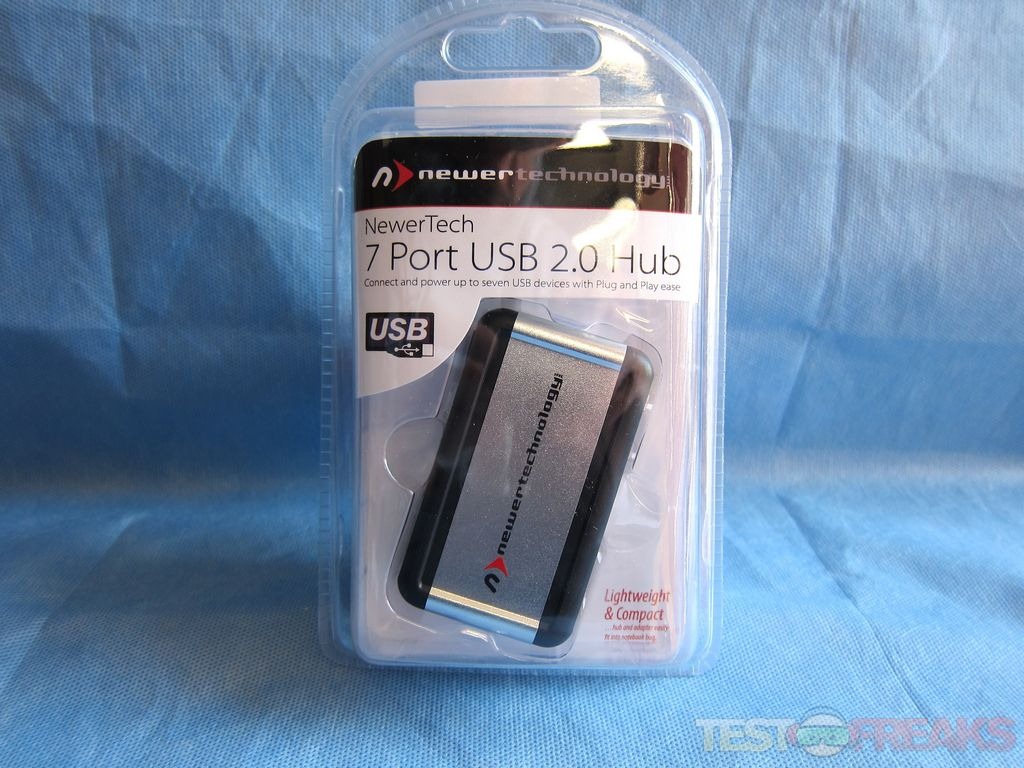

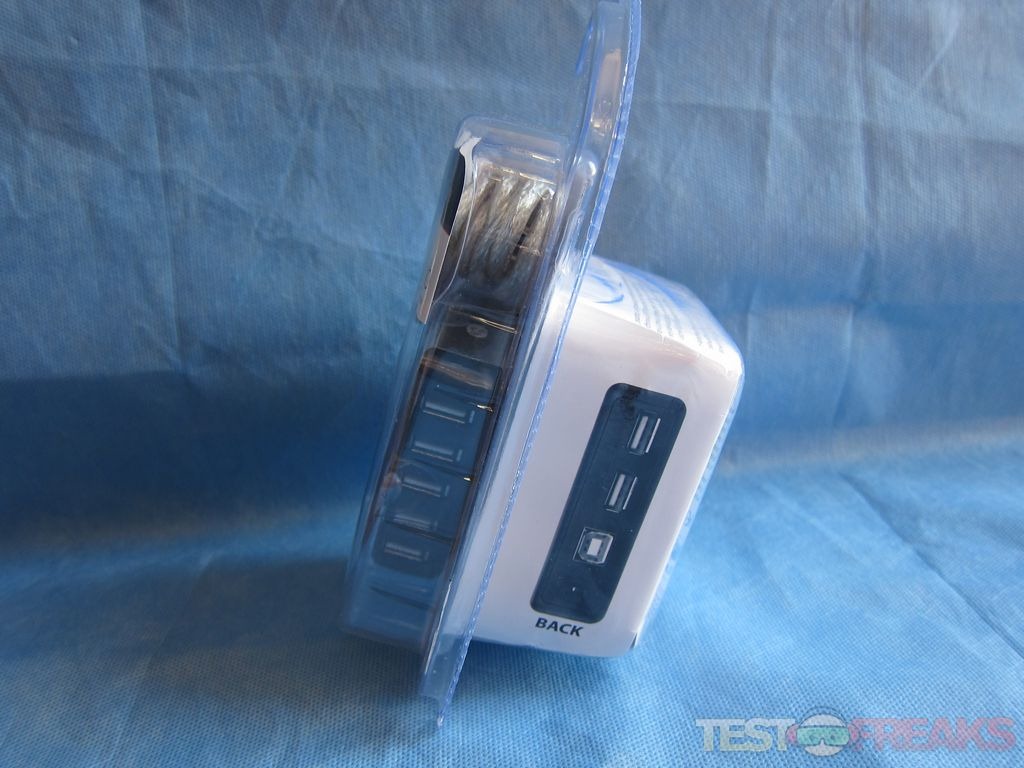

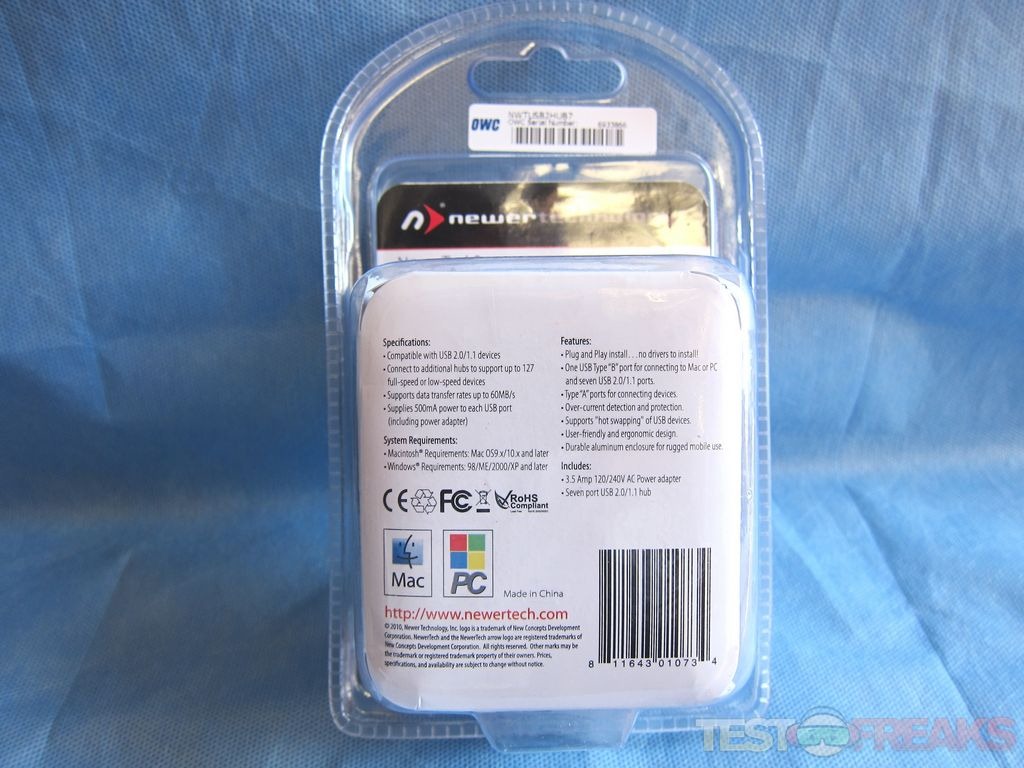

The 7 Port USB 2.0 Hub with 3.5 Amp Power Supply comes in a clear plastic blister package with the Hub visualized on the front. On the back is a list of features and specs along with pictures of the front and back of the hub on the sides of the package.

Hub01 Hub02 Hub03 Hub04

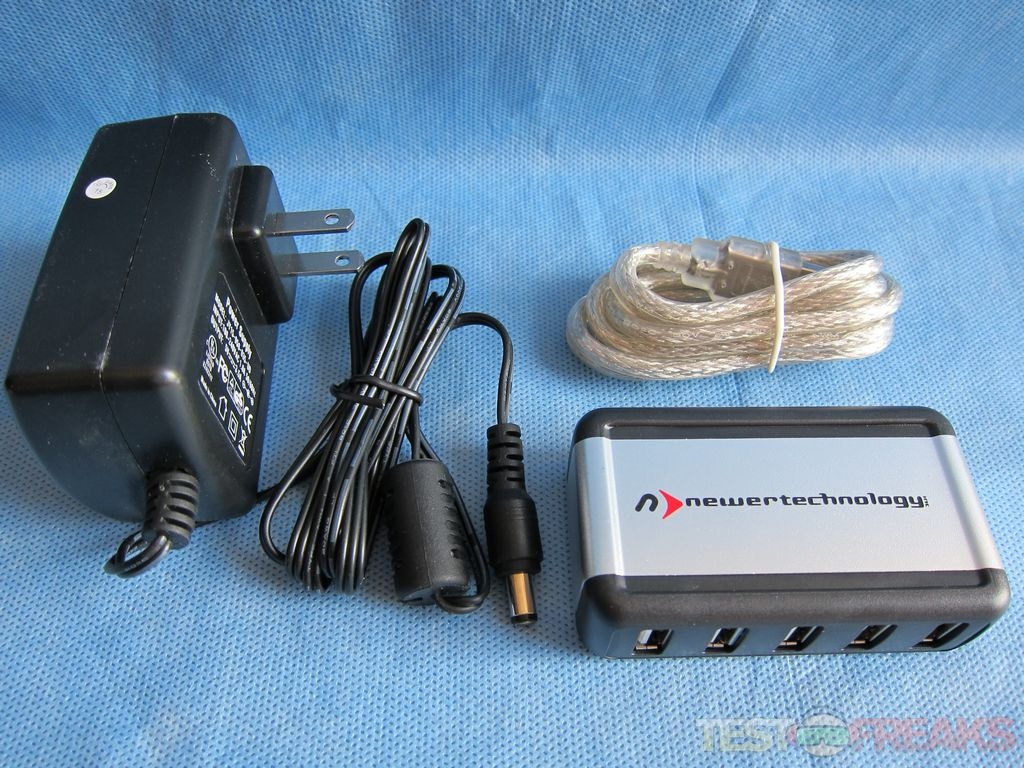

Opening the package reveals the 7 port USB hub along with a 3.5 amp power adapter and a double shielded USB 2.0/1.1 A-B connecting cable.

Hub05

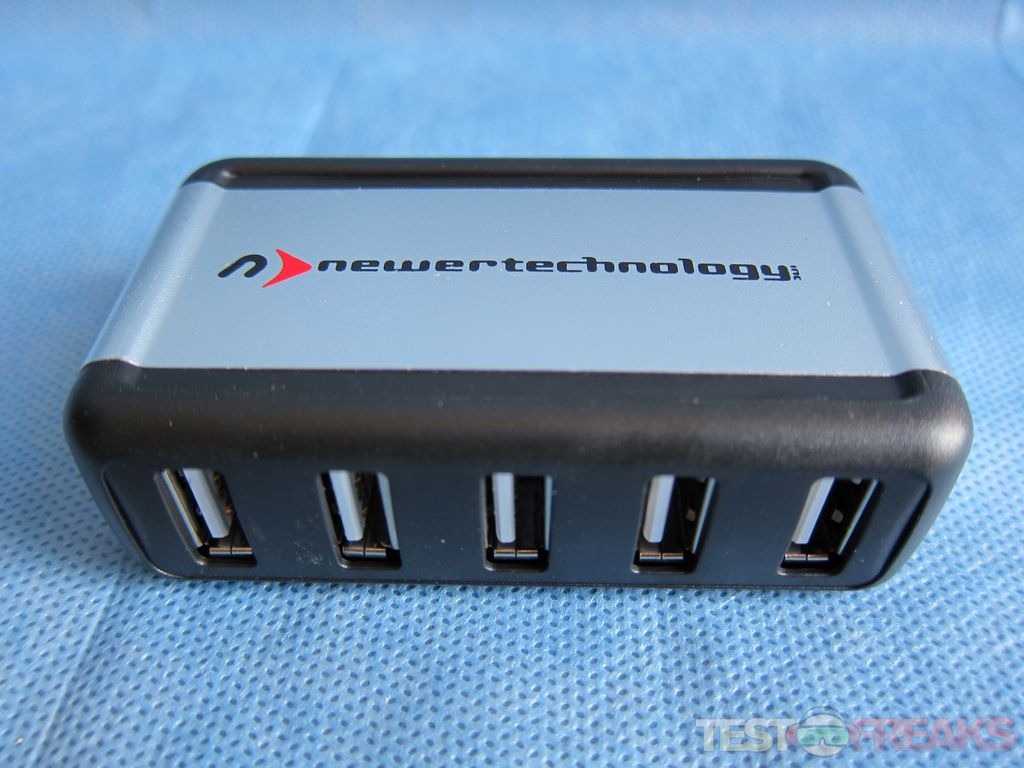

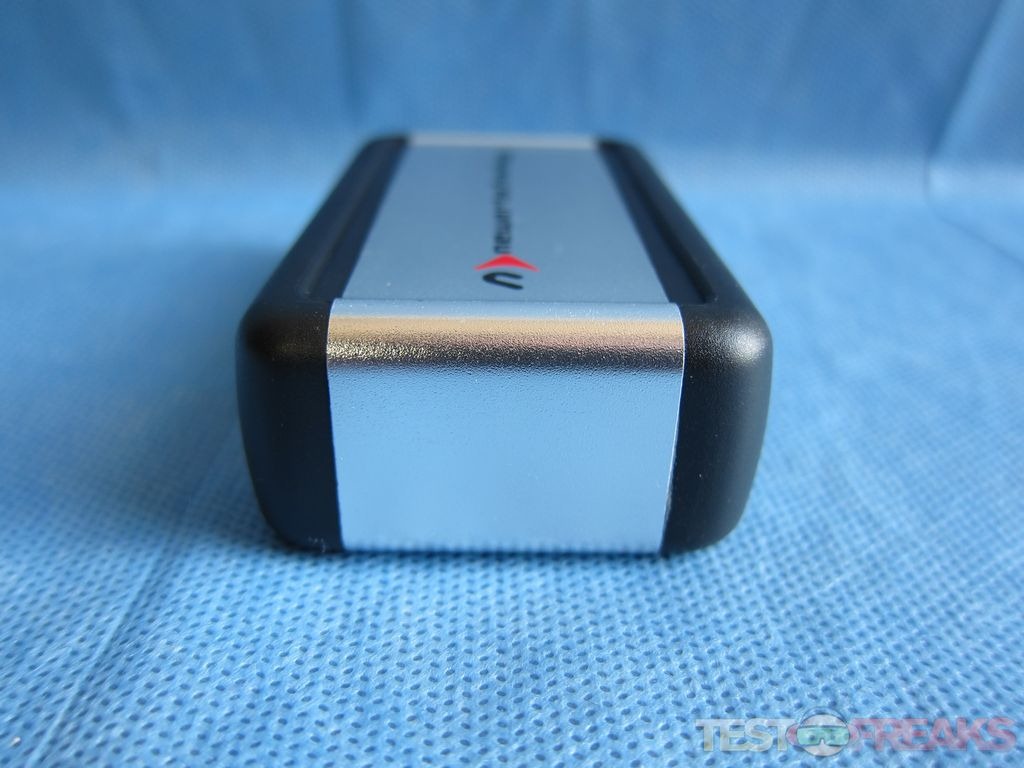

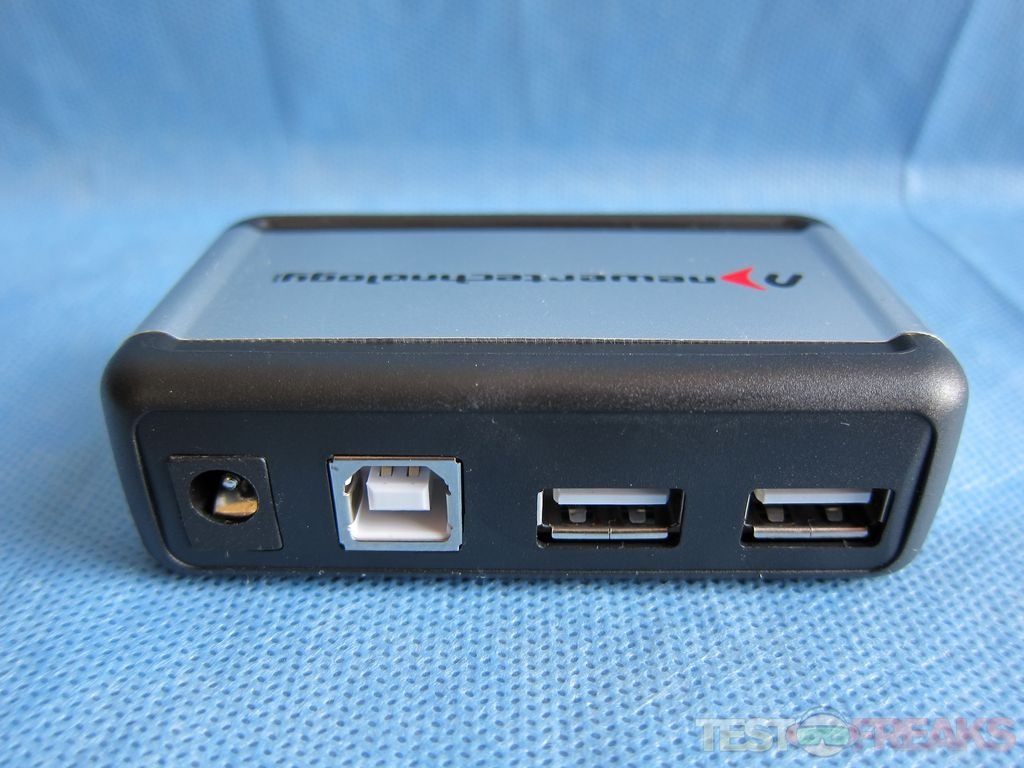

The hub is composed of gray plastic with a silver aluminum band in the middle with the NewerTechnology logo on top. On the front are five vertical USB ports on the back are two additional USB ports along with a USB 2.0 uplink type (B) port for connecting the hub to your PC or Mac; adjacent to this port is the AC input.

Hub06 Hub07 Hub08 Hub09

Specifications:

7 Port USB 2.0 Hub with 3.5 Amp Power Supply

Connect and power up to seven USB devices with Plug and Play ease.

Connect, organize, charge, and sync
your digital accessories and devices!

Connect, organize, and power up to seven devices hassle free with the NewerTech Seven Port USB 2.0 Powered Hub. By offering a full 500mA per port, this compact powered hub enables you to connect power hungry devices like external drives, scanners, printers, optical drives, and digital cameras simultaneously to a Mac or PC. And with seven individual ports, you now can enjoy fast access for temporary devices like thumb drives, media readers and even USB chargeable devices like iPods and iPhones.

Its space-saving design frees up desktop clutter and the need for multiple AC power adapter cords while providing seamless connection and data transfer rates up to 60MB/s with all USB 2.0/1.1 devices. Add additional hubs to support connecting up to 127 USB devices.

  • Plug and Play…no drivers to install!
  • One USB 2.0 Uplink Type "B" port for connecting to Mac or PC and seven USB 2.0/1.1 ports.
  • Type "A" ports for connecting devices.
  • Over-current detection and protection.
  • Supports "hot swapping" of USB devices.
  • User-friendly and ergonomic design.
  • Durable aluminum enclosure for rugged mobile use.

Compatible with USB 2.0/1.1 devices

Connect to additional hubs to support up to 127 full-speed or low-speed devices

Supports data transfer rates up to 60MB/s

Supplies 500mA power to each USB port (including power adapter)

Dimensions: 3.125? x 1.8125? x 0.8125?

Weight: 11.3 oz. (with all accessories)



Installation of the USB hub involves plugging in the power adapter into an AC outlet and the other end of the cord into the hub itself. Next attach the included USB cable to the hub and your PC or Mac. Your machine should automatically detect the presence of the hub and you are ready to use the device.

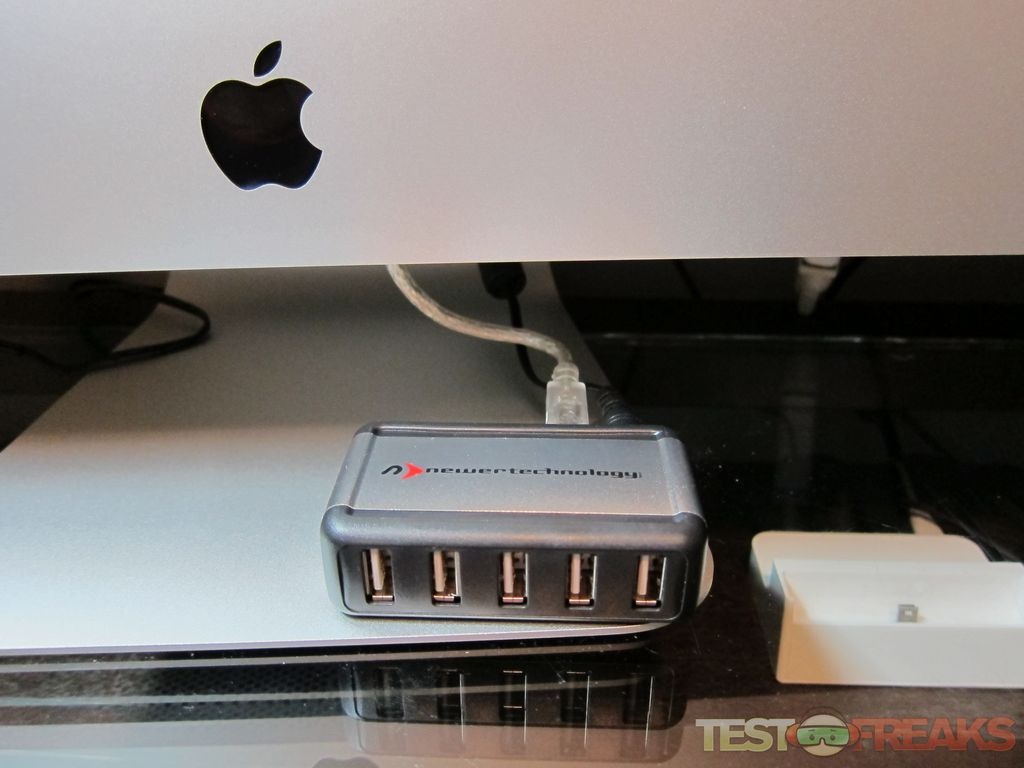

For testing I use the Hub with both my 2011 27” Core i5 2.7 GHz iMac and my Core i7 2600K PC. The 7-port USB 2.0 hub works as advertised as it easily connects and powers all manner of USB without any noticeable strain on my PC or Mac. At one point I had two external drives, a scanner, a USB headset and three USB thumb drives all connected at once. Using the Hub with an iMac was a pleasure as there was no need to reach behind my Apple computer.

Hub10 Hub11

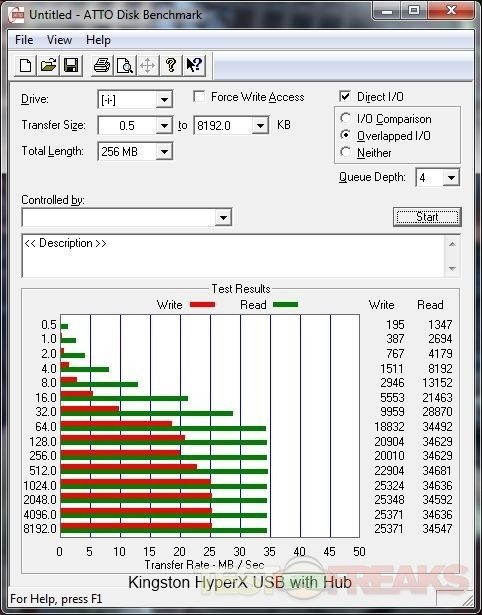

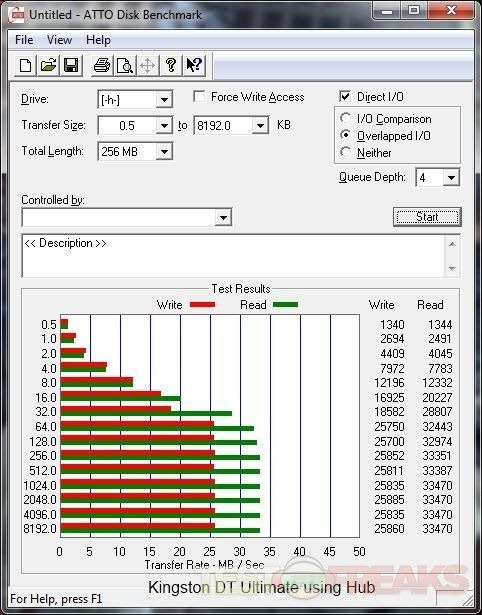

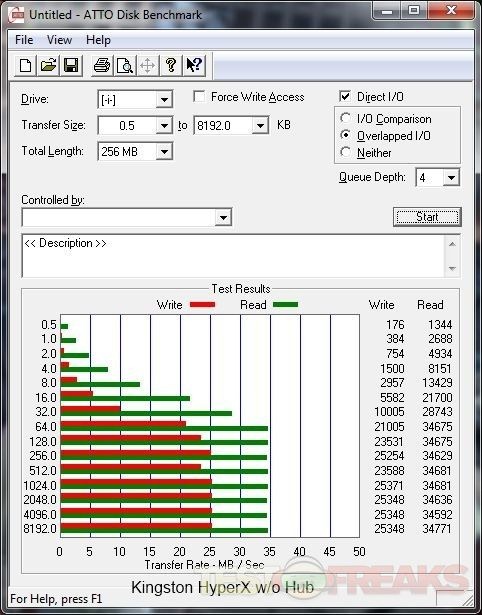

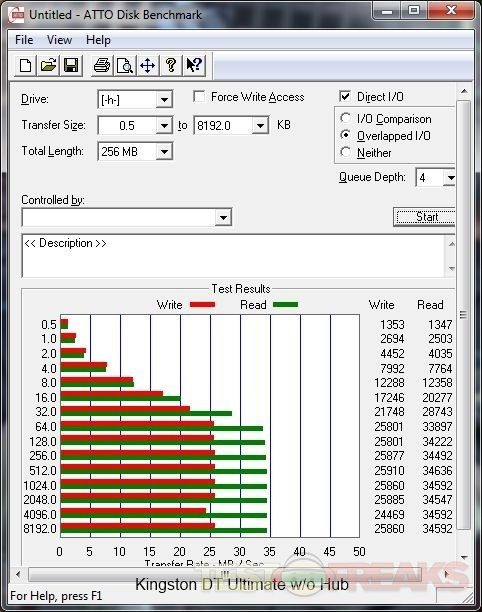

To test the transfer speeds of the hub, I used ATTO Benchmark with some Kingston USB 3.0 Drives to see whether there was a performance hit. Looking at the graphs you can see the hub has minimal effect on the USB devices performance.

Hub12 Hub13 Hub14 Hub15



Hub01 Hub05 Hub06 Hub09

Conclusion:

If you are looking for an affordable way to add USB connections to your desktop PC, laptop or Mac than the 7 Port USB 2.0 Hub with 3.5 Amp Power Supply from NewerTechnology is a great solution. This hub is very affordable coming in at just under $20. Other hubs in this price range usually only offer four USB ports, so seven ports for this price is a very good deal. Since it is a powered hub it can work with pretty much any USB device without putting a strain on the host system. I know I will be using this hub on my iMac for a very long time.



10recommended5



Pros:
+Powered USB hub
+7 USB ports
+Low profile

Cons:
-None

Grades:
Overall score-10-10
Design score-10-10
Performance score-10-10
