Review of Lian Li USB 3.0 3.5 Inch External Enclosure EX-103


TestFreaks Data











lian9

Lian Li is a name that’s synonymous with high quality. If you know the name then you know that their stuff is not what one would call inexpensive at all. The price though is well worth it when it comes to the top quality in construction, design and functionality you’ll get when you purchase a Lian Li product. Today for review I have one of their new USB 3.0 enclosures, just named the EX-103. It’s not exactly what we think of when you mention enclosure though, it’s not quite portable, it’s meant more to sit on your desk than travel with you. The enclosure is very well made as you might expect from Lian Li, and it has a subtle yet stylish design to it. So read on to learn more..

Here’s a box shot, but both the front and back are obscured by shipping labels. I tried to get them off, but it was just removing the box with it, so I gave up.

lian1

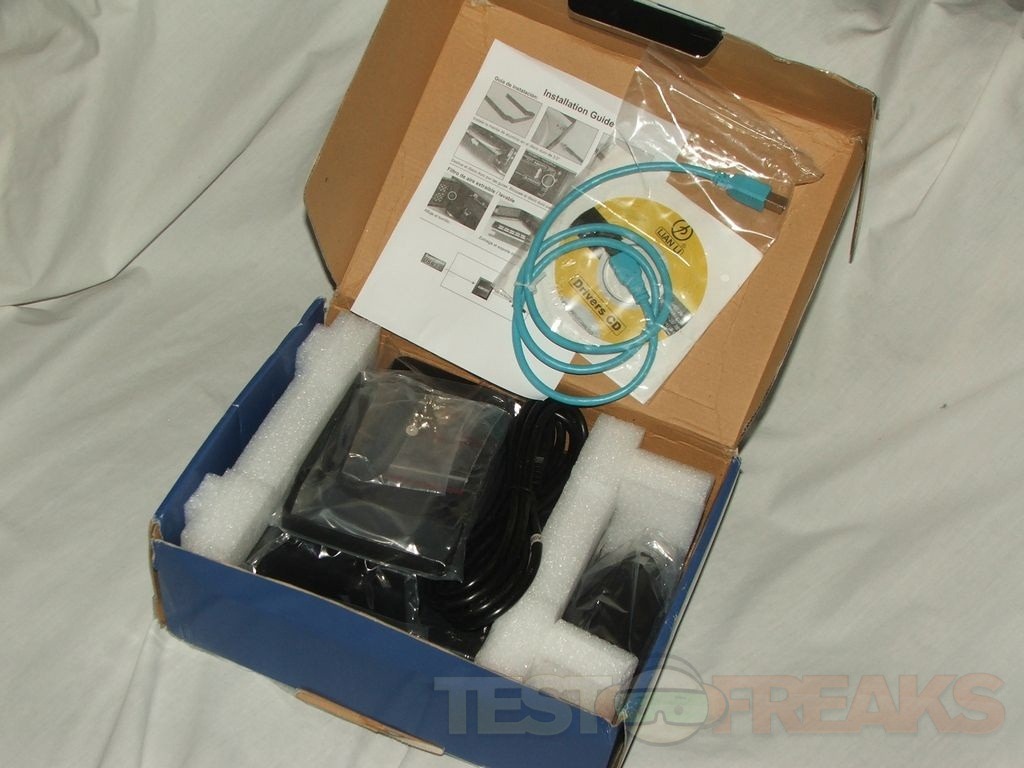

When you open it you’re greeted with styrofoam packaging and everything in plastic bags. It seems packaged well.

lian2

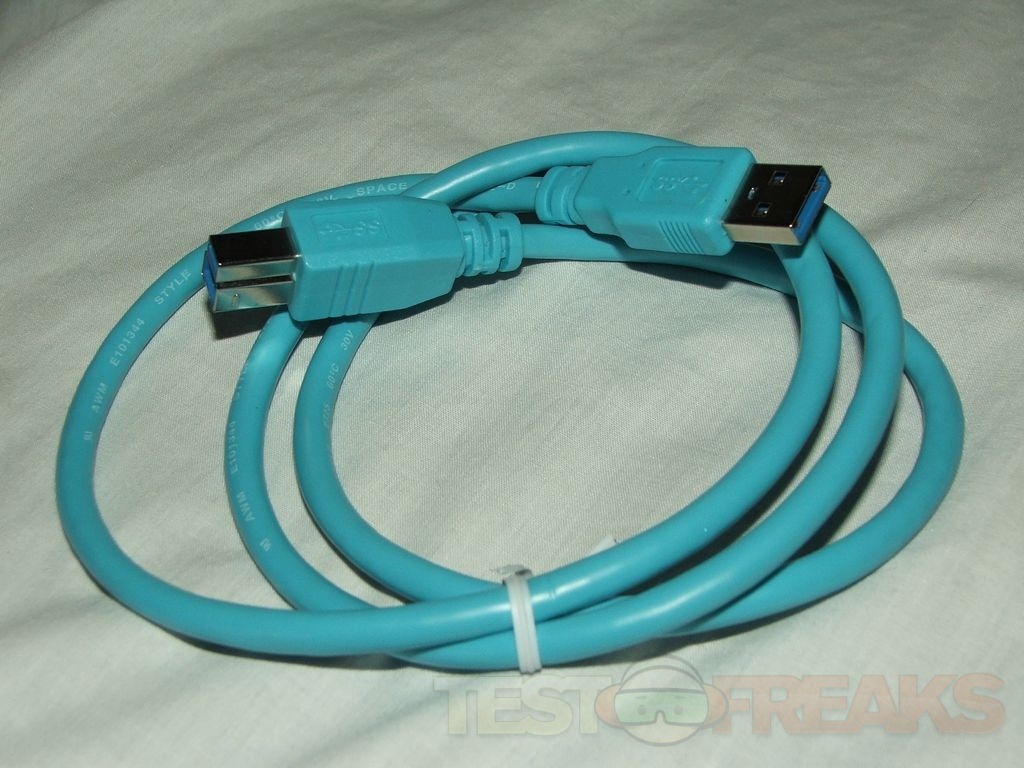

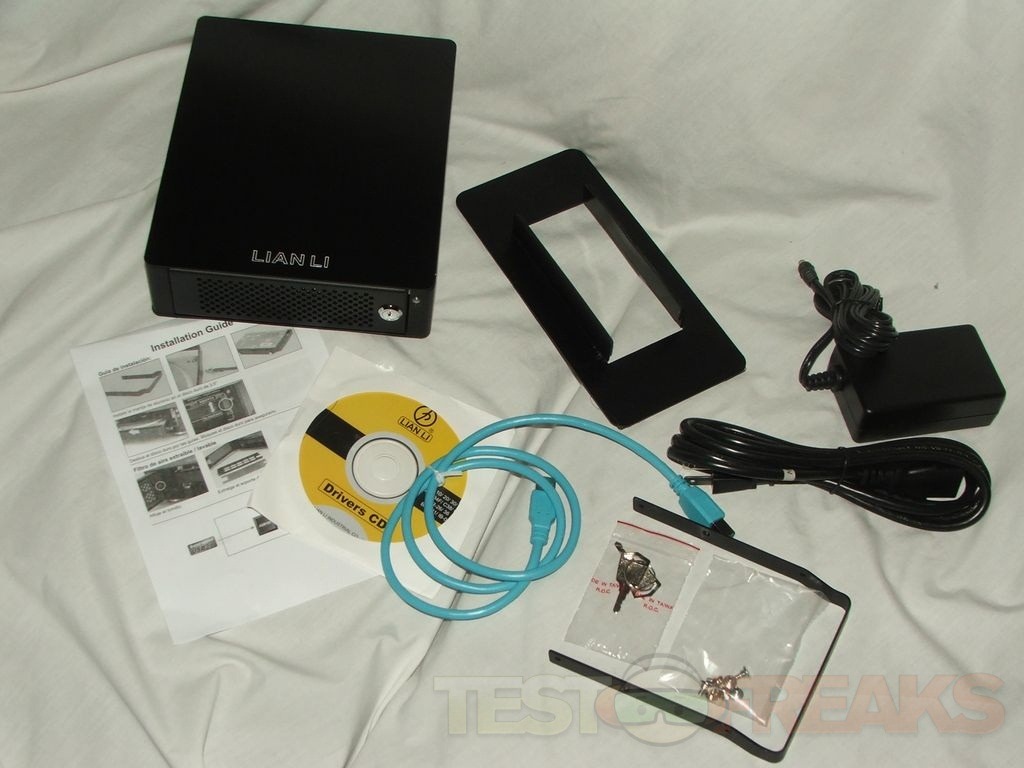

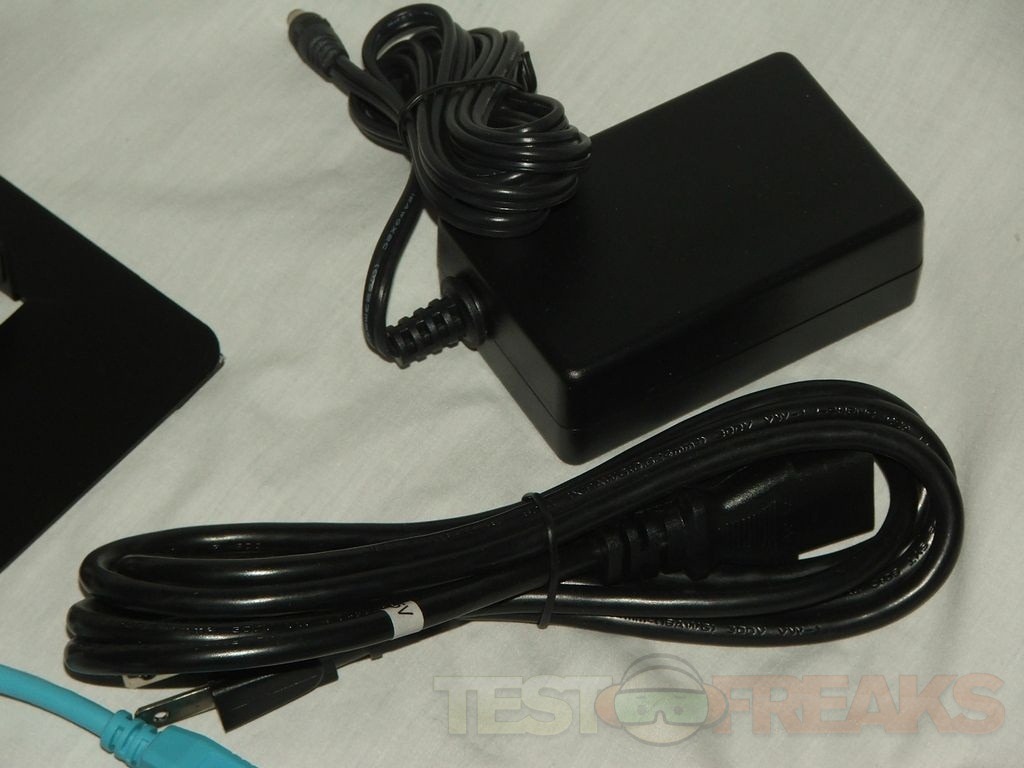

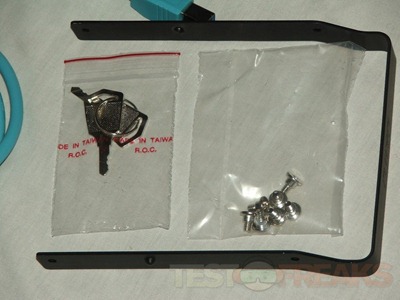

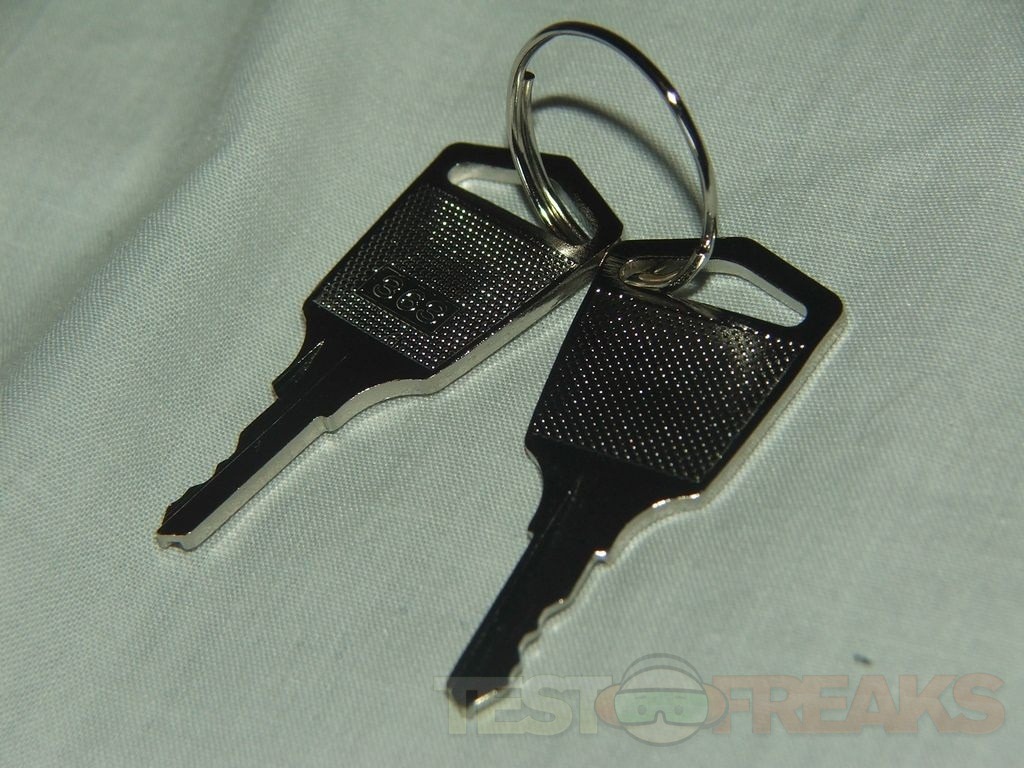

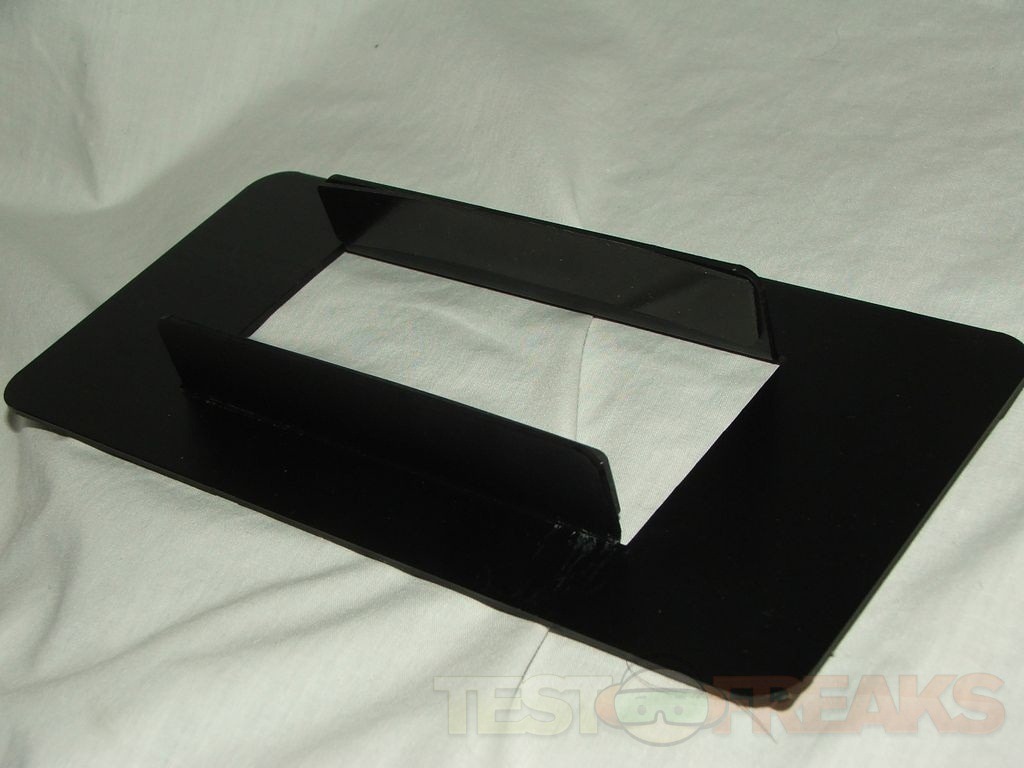

Included with the enclosure you’ll find  keys, screws, hard drive bracket, power supply and cord, USB 3.0 cable, driver disc, instructions and a stand to use the drive vertically.

lian3 lian4 lian6 lian7 lian8 lian5

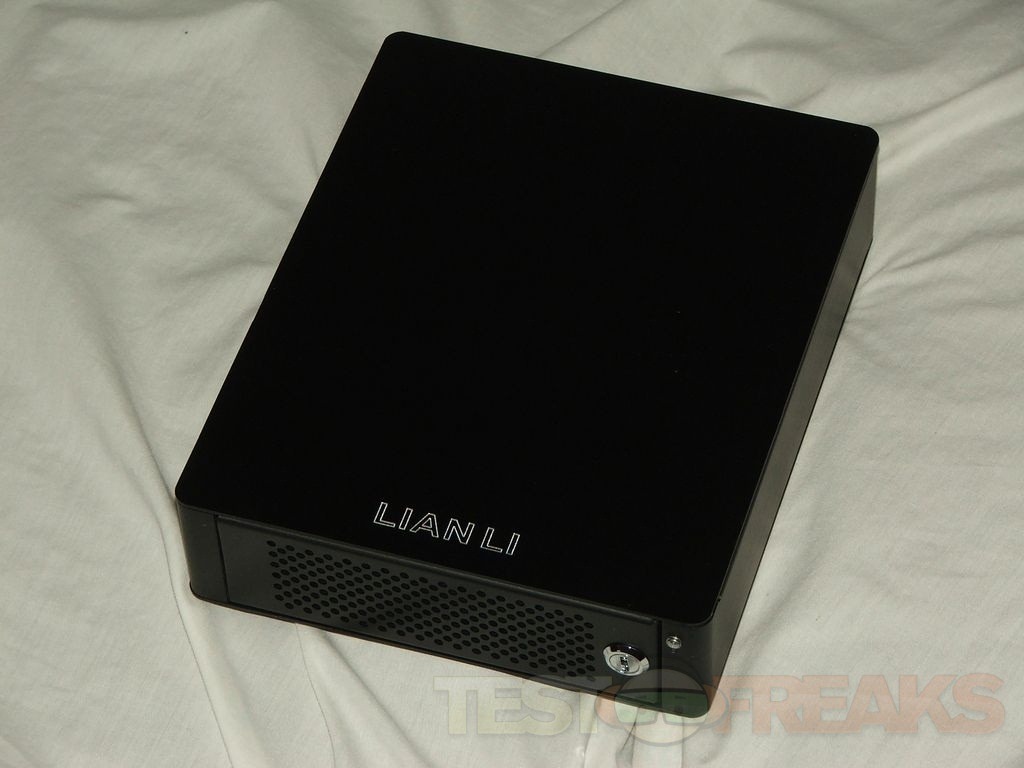

The enclosure has the Lian Li name on the top of it and that’s the only real identifying mark.

lian9

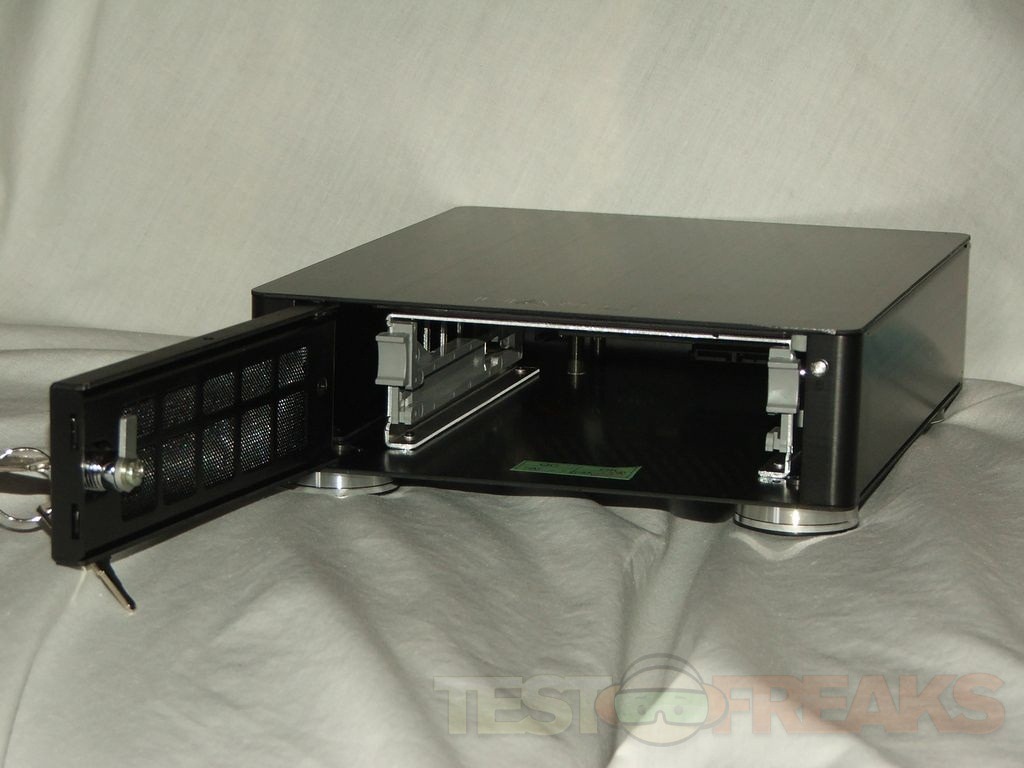

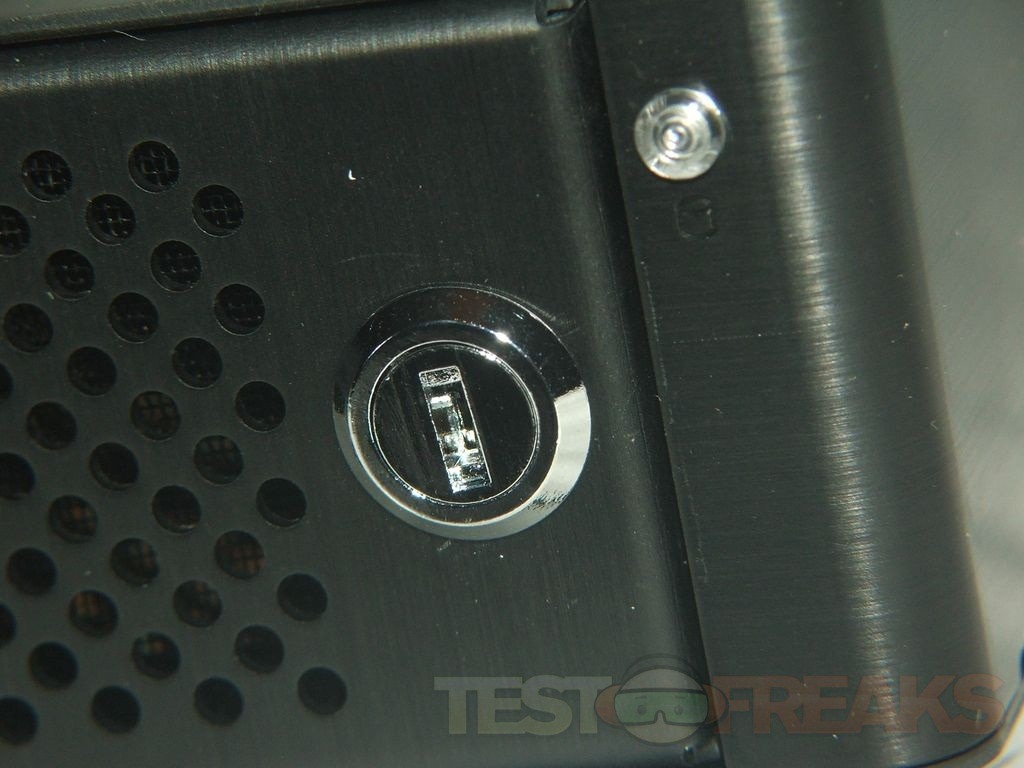

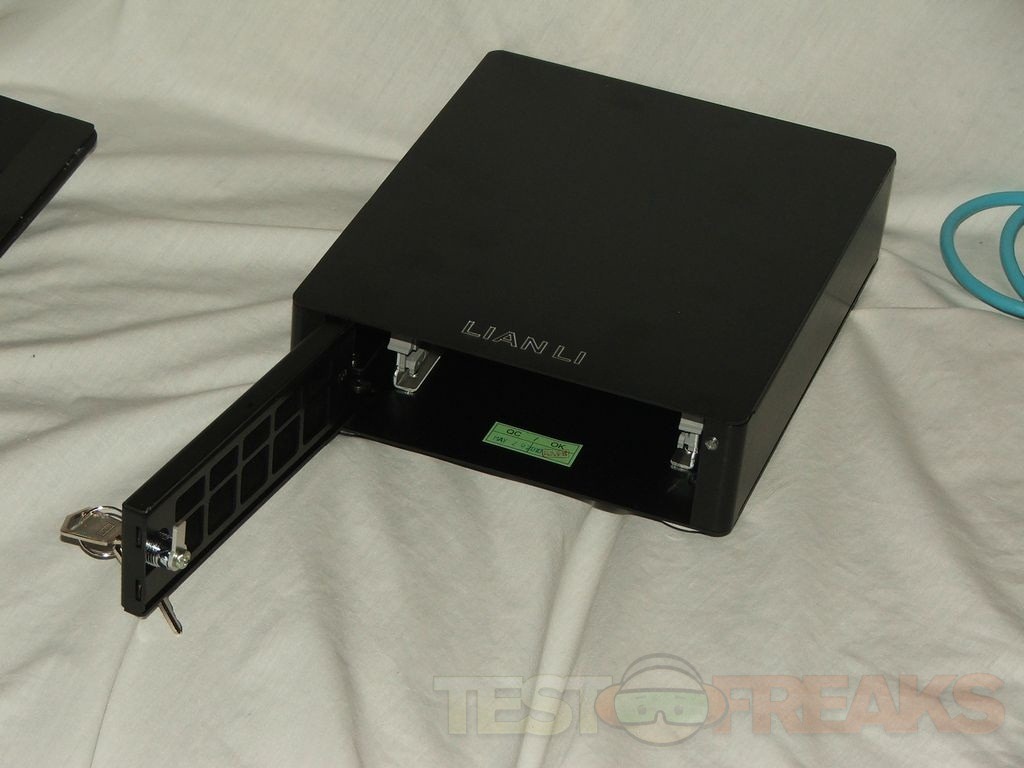

The front door is full of ventilation holes and the door is secured by the included keys. Next to the key hole is an LED that turns blue when powered on and blinks for activity.

lian10 lian11 lian12

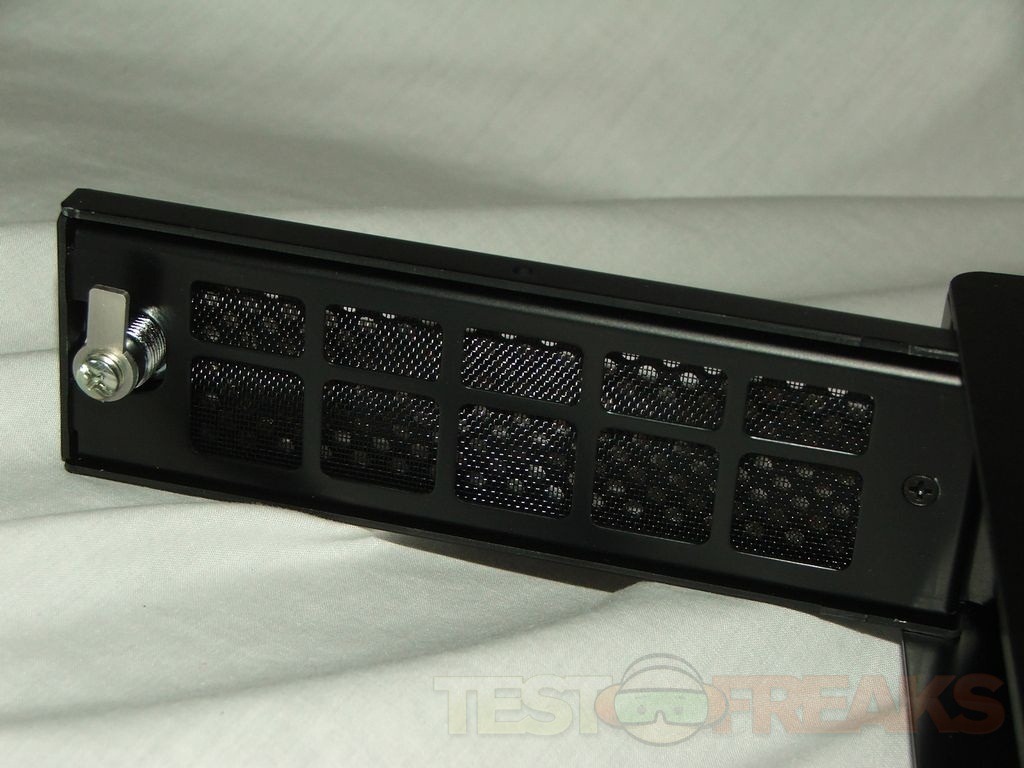

The door even has a removable dust filter.

lian13

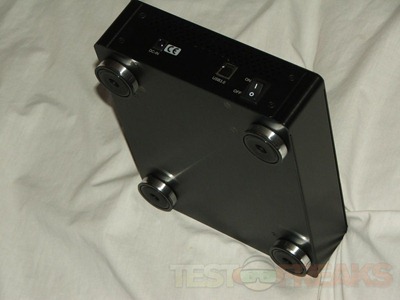

On the bottom you’ll find four very nice looking feet with rubber bottoms. The feet resemble those you’d find on a piece of stereo equipment really.

lian14

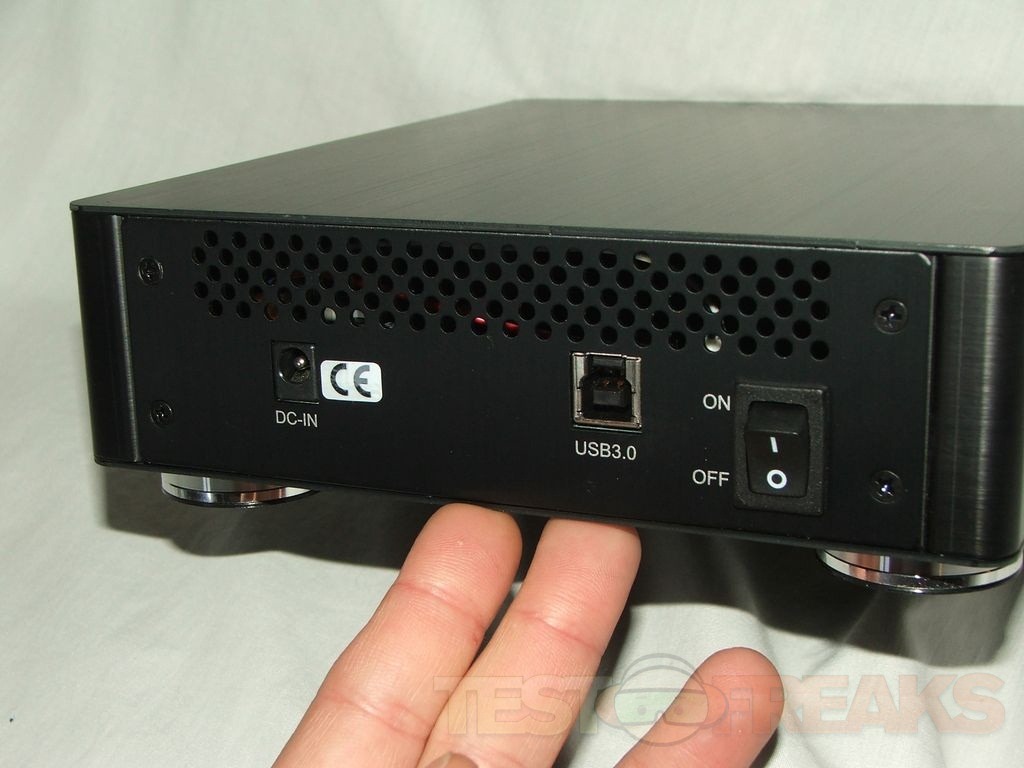

On the back is where you’ll find the connections for USB 3.0 and power along with the on/off rocker switch.

lian15

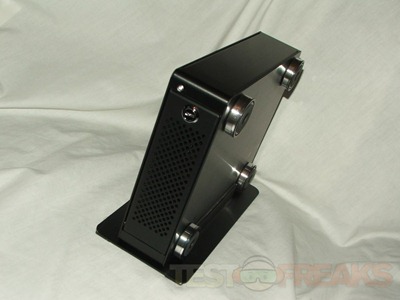

The stand has a rubber base and the insides are padded as well to protect the enclosure from scratches. Here’s the EX-103 in the stand:

lian16

Specifications:

EX-103 3.5 Inch External Enclosure

Model : EX-103

USB3.0 3.5” HDD External Enclosure (1bays)
Feature:
-USB3.0 Superspeed up to 5G Mbps
-Bridge Chip: ASM1051
-AC Adapter: YES
-Material: Aluminum
-Internal Interface: SATA-II
-External Interface: USB 3.0
-Color: Black

Specification:
-Transfer Rate: Super-Speed USB 5Gb/s (Max), High-Speed USB 480Mb/sSATA
-Compatible: SATA I & II HDD
-Compatible: All 2.5″&3.5″ SATA HDD to 2TB
-Support Microsoft Windows 7 / Vista / XP / 2003 / 2000 / ME / Mac OS 10.X / various Linux kernels USB2.0
-Dim: (W)170mm x (H)50mm x (D)215mm

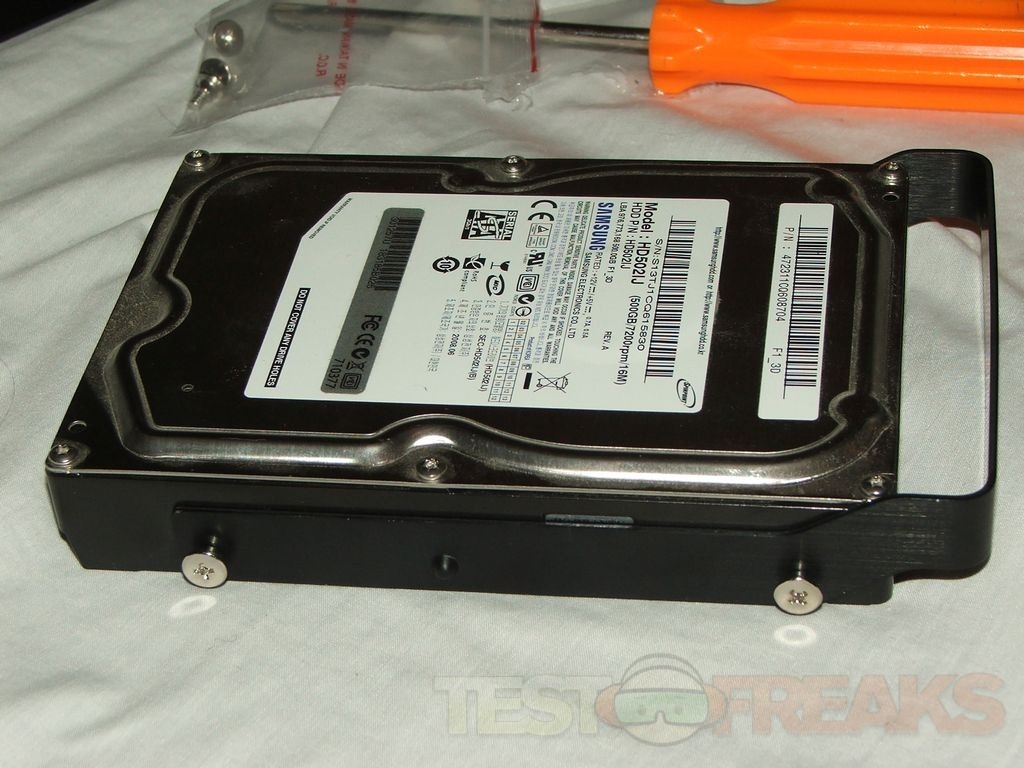

The screws included are special, in that they are only for this enclosure. They’re not like normal screws in that they are flared out on the end so they fit into the rails inside of the enclosure. Once the drive is secured in the rack it will just slide right into the EX-103. The rack also acts like a handle for the drive.

lian17

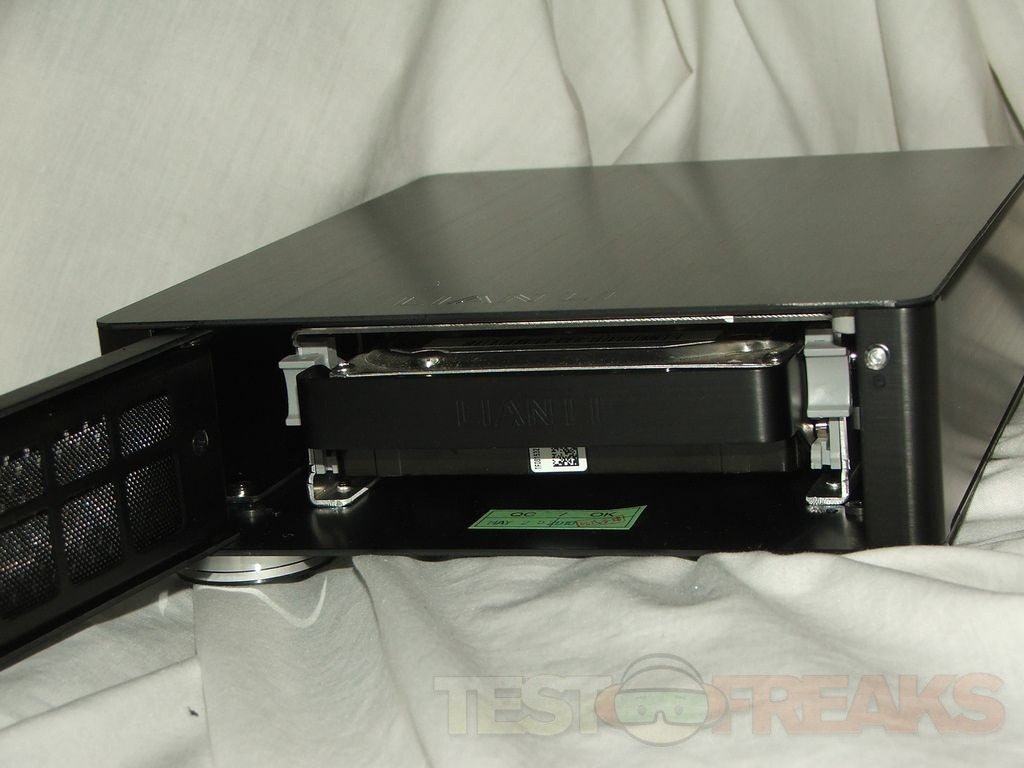

Here’s the drive in the EX-103, the rack also has the Lian Li name on the handle part.

lian18

As you can see from the above picture, the enclosure is actually much large than the drive itself. The EX-103 isn’t exactly what I would call portable but I don’t think it’s really supposed to be.

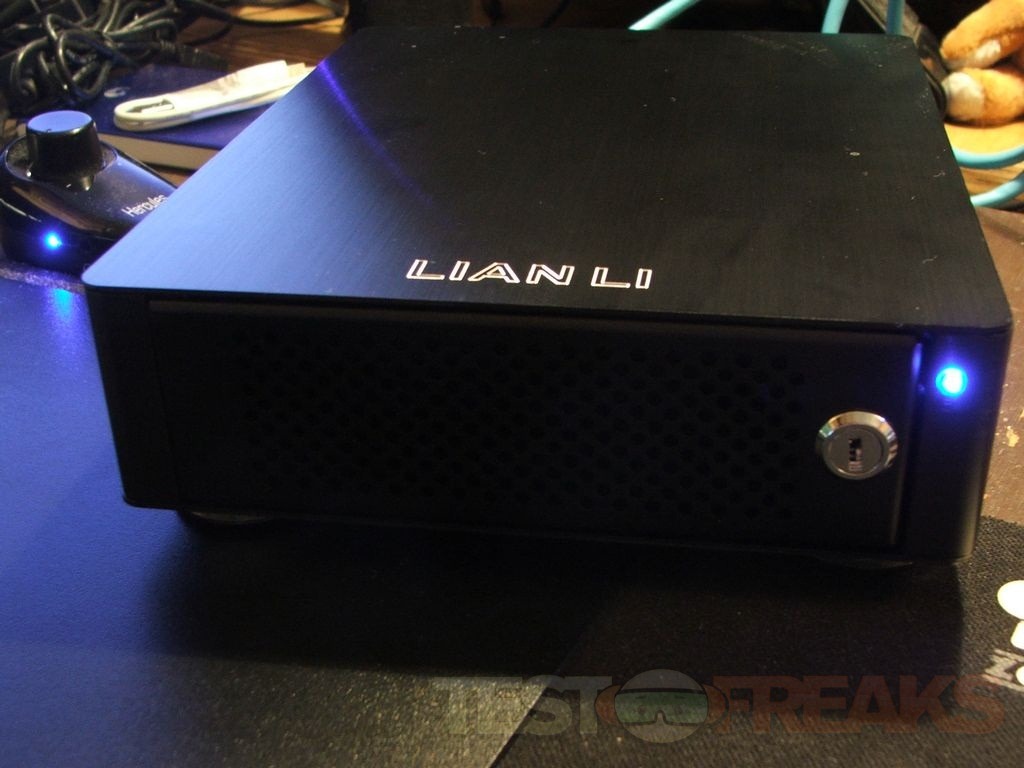

Here’s the enclosure powered on:

lian19

On to the testing part of this. The drive I’m using is a Samsung F1, specifically a 500gb HE502IJ drive.

I used both ATTO Disk Benchmark and HDTune for testing USB 3.0, USB 2.0 and one the SATA port for comparison.

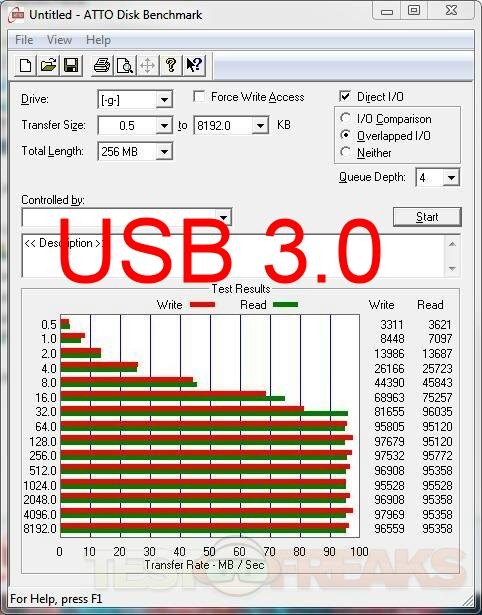

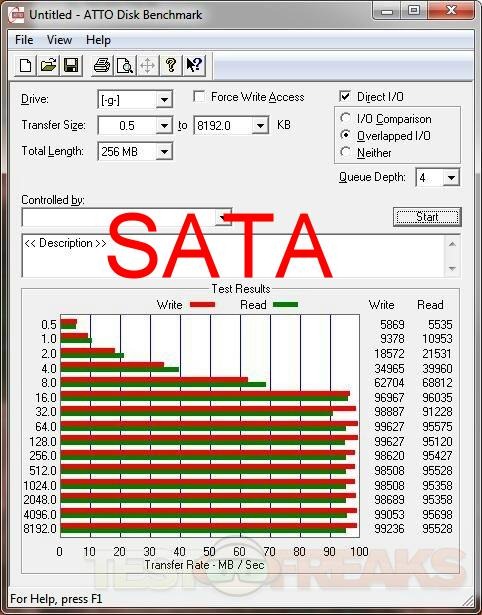

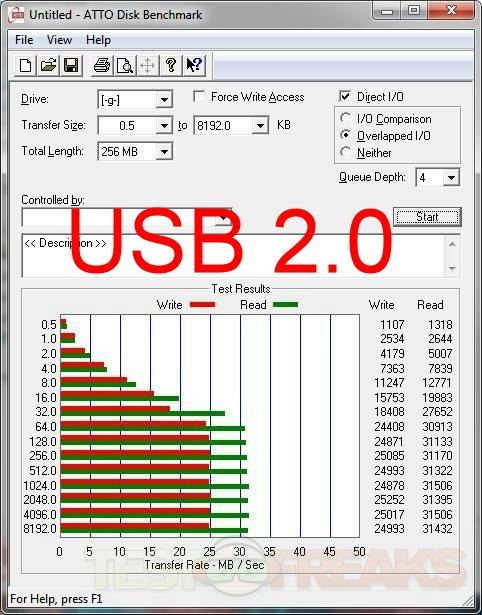

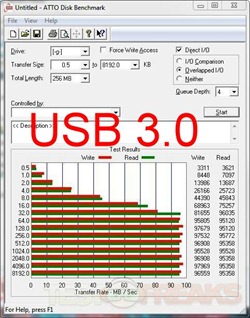

We’ll start out with ATTO:

atto sata atto usb2 atto usb3

The USB 3.0 and SATA speeds are virtually the same, not bad. Of course USB 2.0 is slow.

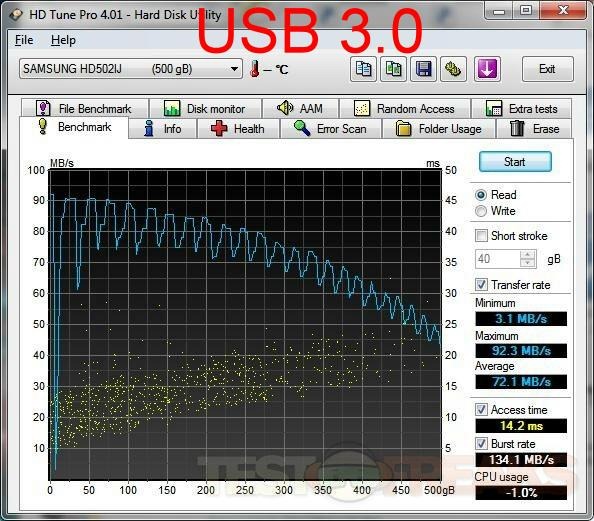

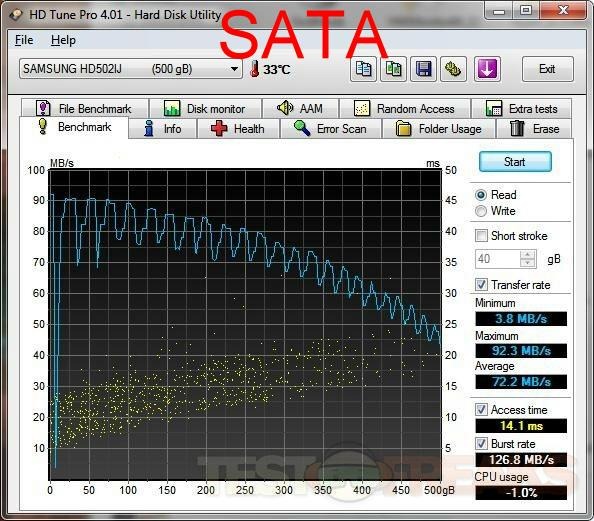

Here’s HDTune:

hdtune sata hdtune usb2 hdtune usb3

Here we see that the Maximum speed is the same with USB 3.0 and SATA, with USB 3.0 actually giving a higher burst rate.


lian3 lian12 lian18 lian19

Conclusion:

The enclosure itself is from Lian Li so you have to expect that it’s a quality product, and it is truly, there’s no doubt about that. It performs well and looks great doing so.

Using it I really didn’t hear the drive inside unless I put my ear right up to it, so it’s quiet.

Even though there’s no fans inside it seems to do a good job of keeping the drive cool. The enclosure is also very lightly warm to the touch, I would say it’s actually cool, especially when compared to other enclosures.

The only thing that bothers me about it is the size, it’s rather large. It’s not what I would call portable at all, but again, I don’t think it’s meant to be. I think when it comes to external enclosures most of us think portability, I know I do, so something like this redefines external enclosures. It’s more reminiscent of a backup drive that one leaves in place really and it’s not meant to be traveled with at all. I think it’s meant to sit on your desk and not only look nice but perform well, and this it does.

It would also be nice if Lian li included another hard drive bracket with it so you could easily and quickly swap drives, or maybe even just do away with the bracket system altogether.

9

Pros:
+Very well made
+Locking front door
+Decent performance
+Stays cool to the touch
+Seems to keep the noise down
+Easy installation

Cons:
-Large size
-Must use rack for drive and only one included

Grades:
Overall score-9-10
Design score-9-10
Performance score-10-10
