Review of HyperX MAX 3.0 128gb Portable USB 3.0 SSD

This past month’s release of Intel’s Sandy Bridge platform will help build the USB 3.0 user base since this interface comes installed in most motherboards designed for this new CPU. Since USB 3.0 features transfer rates up to 4.8Gbps there will be a slew of new peripherals designed to take advantage of this speed. I personally can’t wait for the USB 3.0 iPod/iPhone cable; backups and syncs will take seconds instead of minutes.

One way to take advantage of this bus speed is to pair a speedy Solid State Drive (SSD) with an enclosure using USB 3.0. Kingston is one of the first to enter this market with the release of its HyperX MAX 3.0, their external SSD based USB 3.0 drive. This drive uses flash memory in place of a mechanic drive which provides advertised read speeds of up to 195MB/sec and writes up to 160MB/sec. Kingston offers the HyperX MAX 3.0 in three capacities – 64GB, 128GB and 256GB.

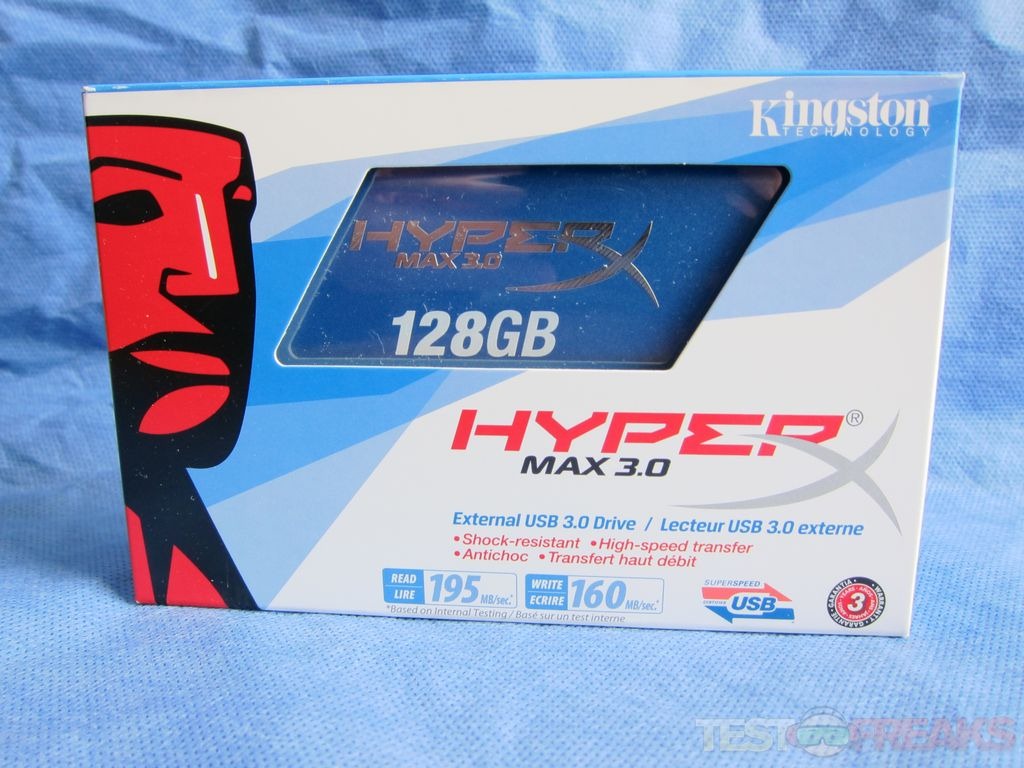

The Kingston HyperX MAX 3.0 arrives in a blue and white cardboard package with the drive partially visualized through a clear plastic window. On the front are the advertised read and write speeds and the SuperSpeed USB logo that will be seen with new USB 3.0 products. The back of the box lists in several languages the system compatibility, which ranges from Windows XP (SP3) up to Windows 7. Macs are not included on this list since Apple has not incorporated USB 3.0 into its machines as of today; but the HyperX Max 3.0 is recognized as a USB 2.0 device on the Macs that I have tested with it.

HyperXMax01 HyperXMax02 HyperXMax03

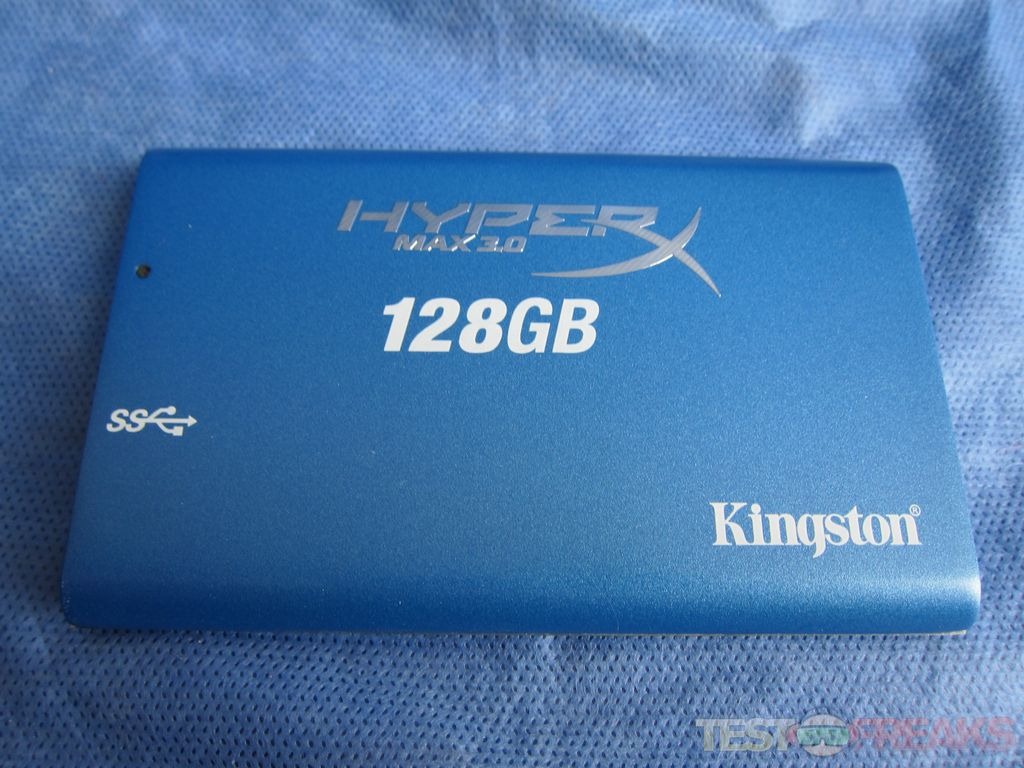

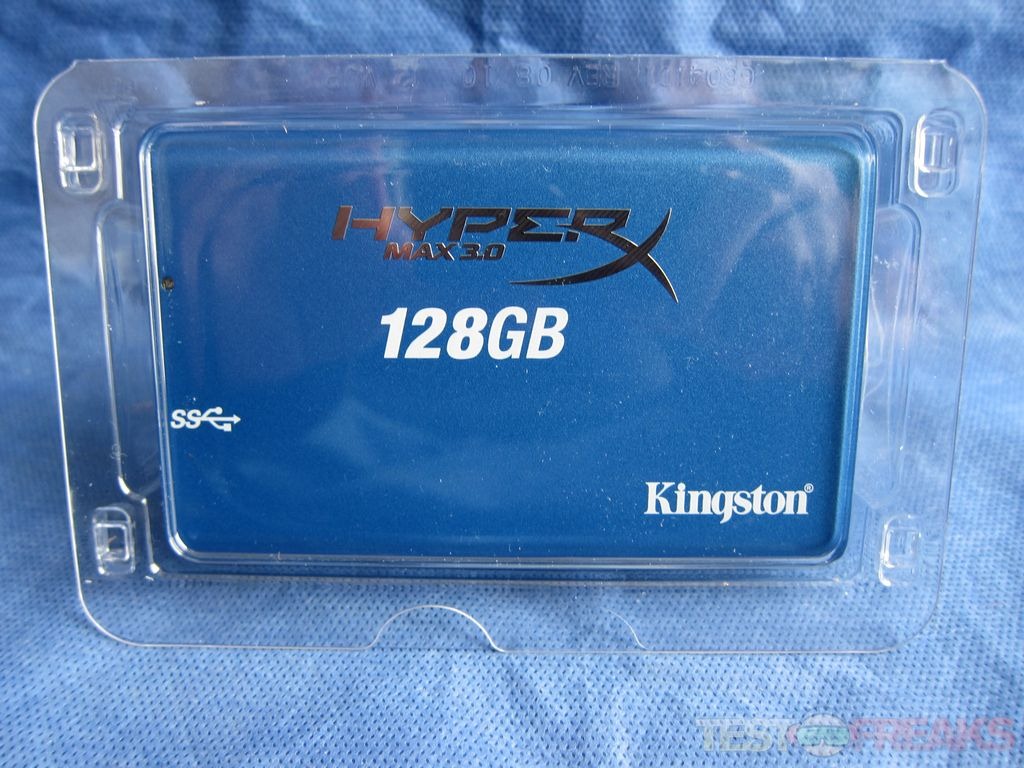

Inside the package we find the HyperX MAX 3.0 drive and a short USB 3.0 cable; both contained in a clear plastic clamshell. The HyperX MAX 3.0 is composed of aluminum casing, which is a similar shade of powder electric blue as the current Hyper X performance RAM heatsinks. Kingston’s choice of a metal case makes the HyperX MAX 3.0 more durable than plastic house external drives and also doubles as a heatsink to protect for the SSD housed within. For today’s review we will be looking at the 128 GB version of the HyperX MAX 3.0.

HyperXMax04 HyperXMax05 HyperXMax06

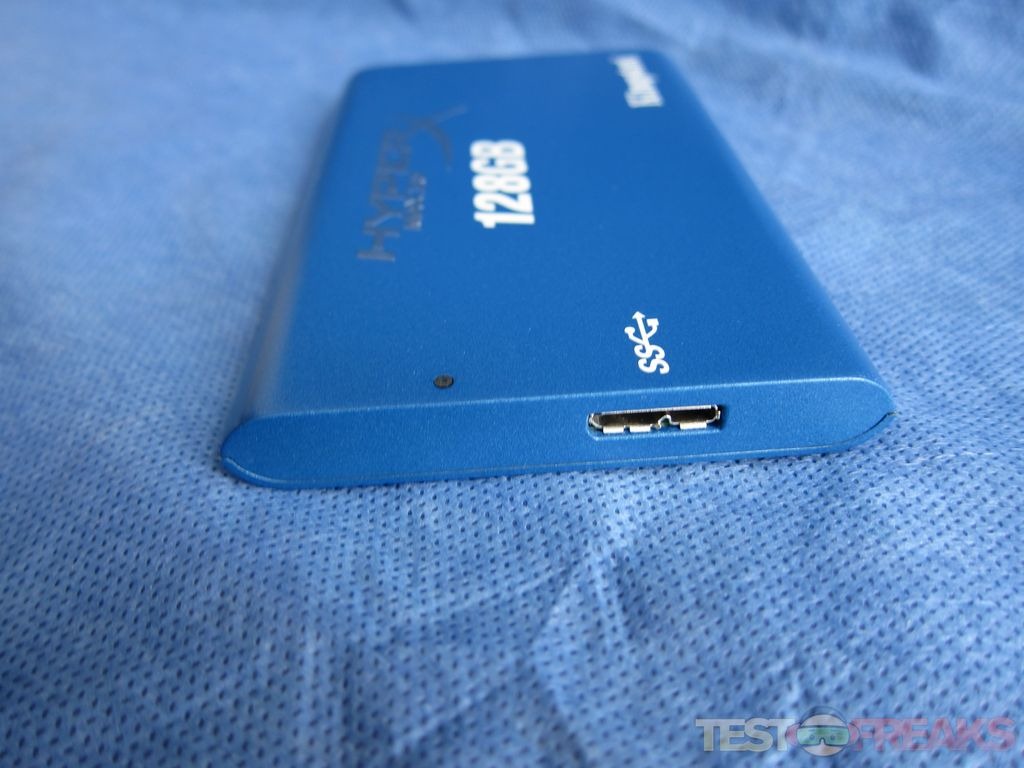

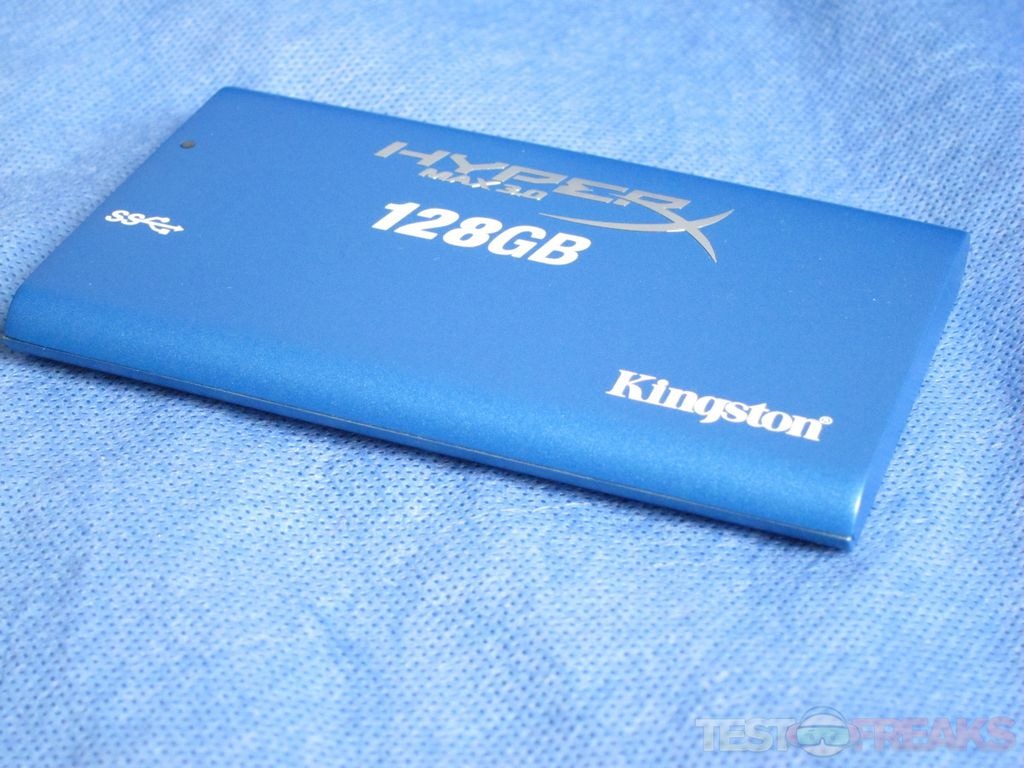

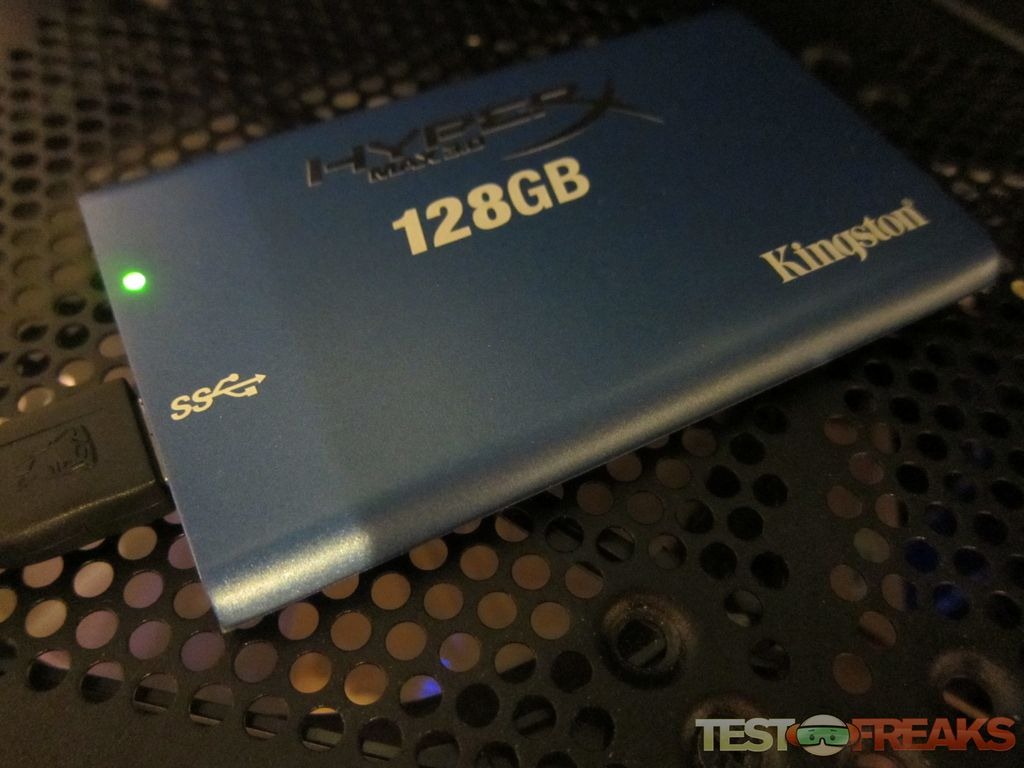

On the top of the casing we see the HyperX MAX 3.0 logo embossed in silver with the drive capacity printed below it. The Kingston logo is found on the lower right towards the front of the drive. There is a label towards the rear next to the USB 3.0 connector. Above this label is a LED that lights blue when connected to a USB 3.0 port and green when attached to a standard USB 2.0 port.

HyperXMax07 HyperXMax08 HyperXMax09 HyperXMax10

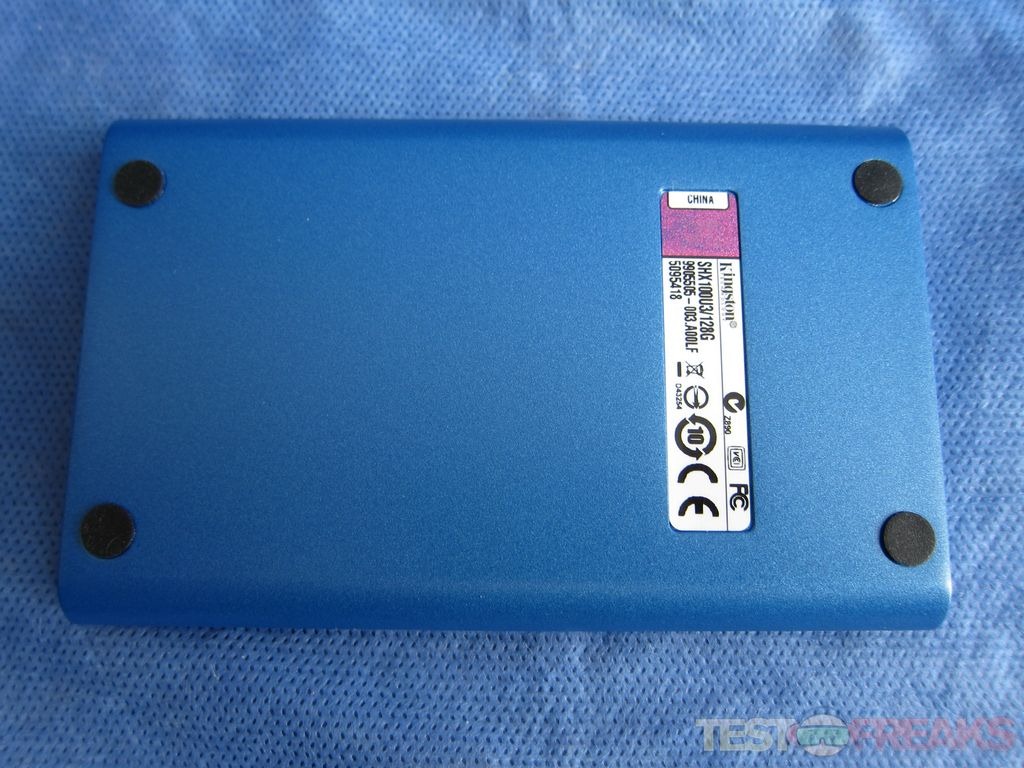

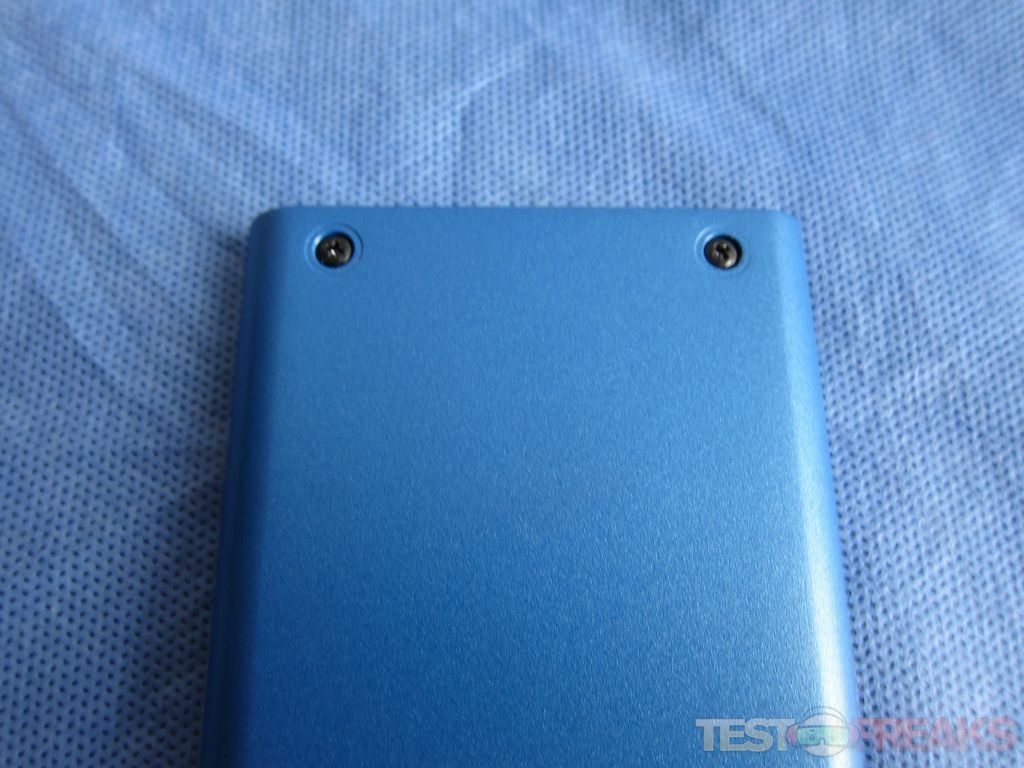

Flipping the HyperX MAX 3.0 over we see four rubber feet to keep the drive from sliding around. Beneath these rubber pads are four screws that keep the casing closed. One of the screws seemed to be covered by epoxy; which is a minor impendent as scraping it off was rather simple.

HyperXMax11 HyperXMax12

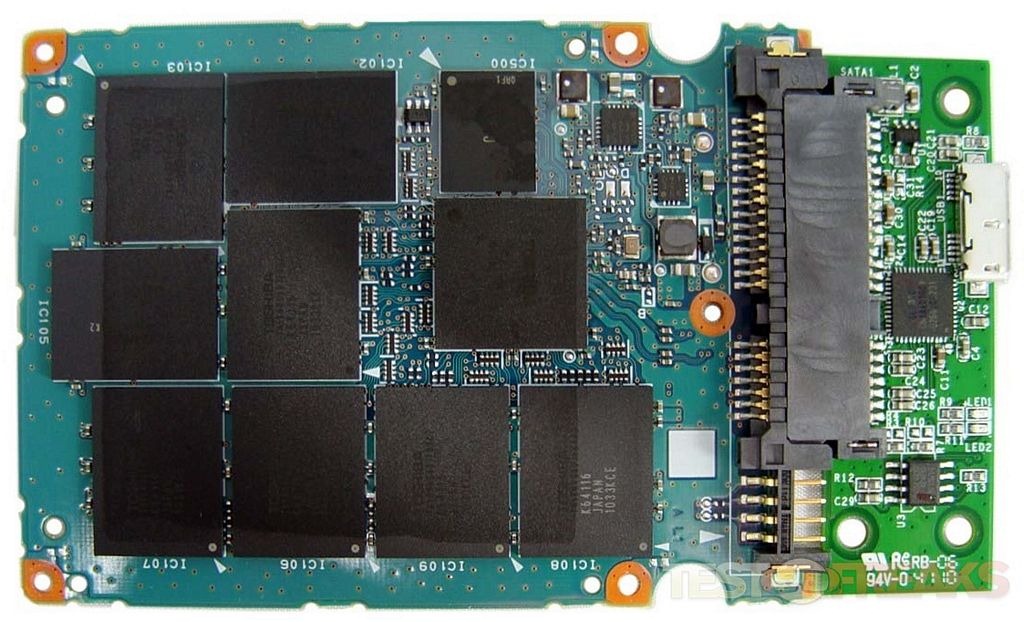

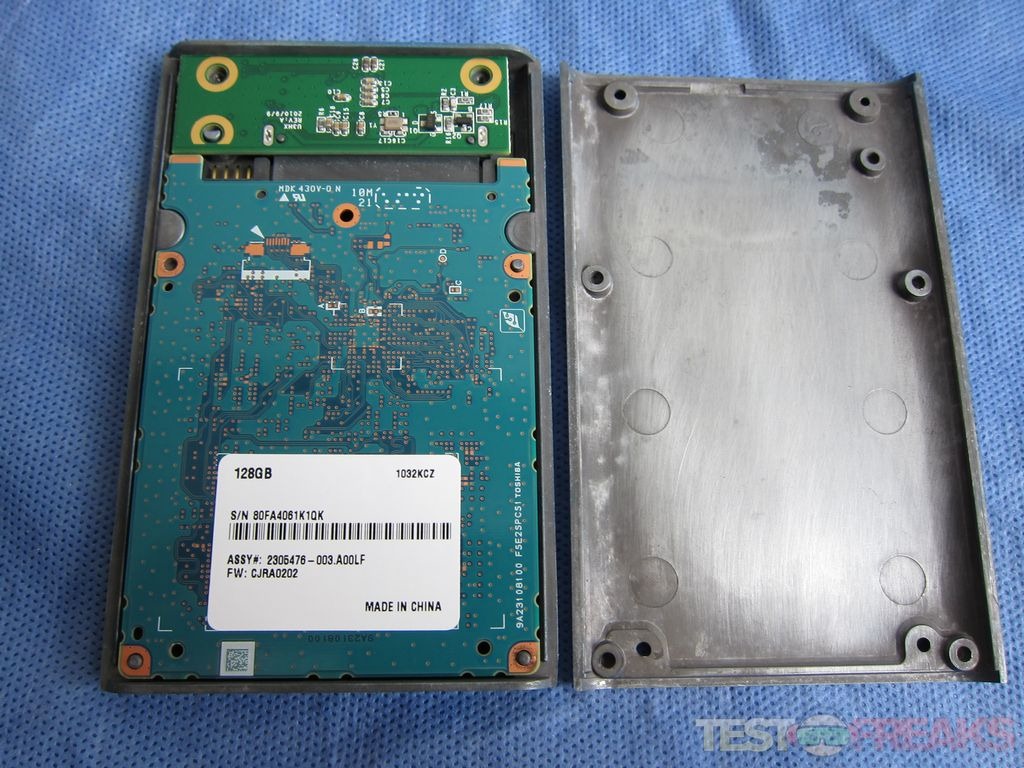

Opening the case reveals an SSD circuit board with a standard SATA power/connector attached to the USB 3.0 board. This SSD is labeled with the drive capacity. An adhesive thermal pad keeps the SSD attached to the top of the aluminum casing. Here is a view of the SSD and USB 3.0 controller.

HyperXMax13 HyperXMax14

Researching this product on the Internet it was determined that a Kingston V+ 100 SSD powers the HyperX MAX 3.0. My Kingston source did verify this information, so if you want a naked SSD for use outside of the ensclosure then you can always extract it from the HyperX MAX 3.0.

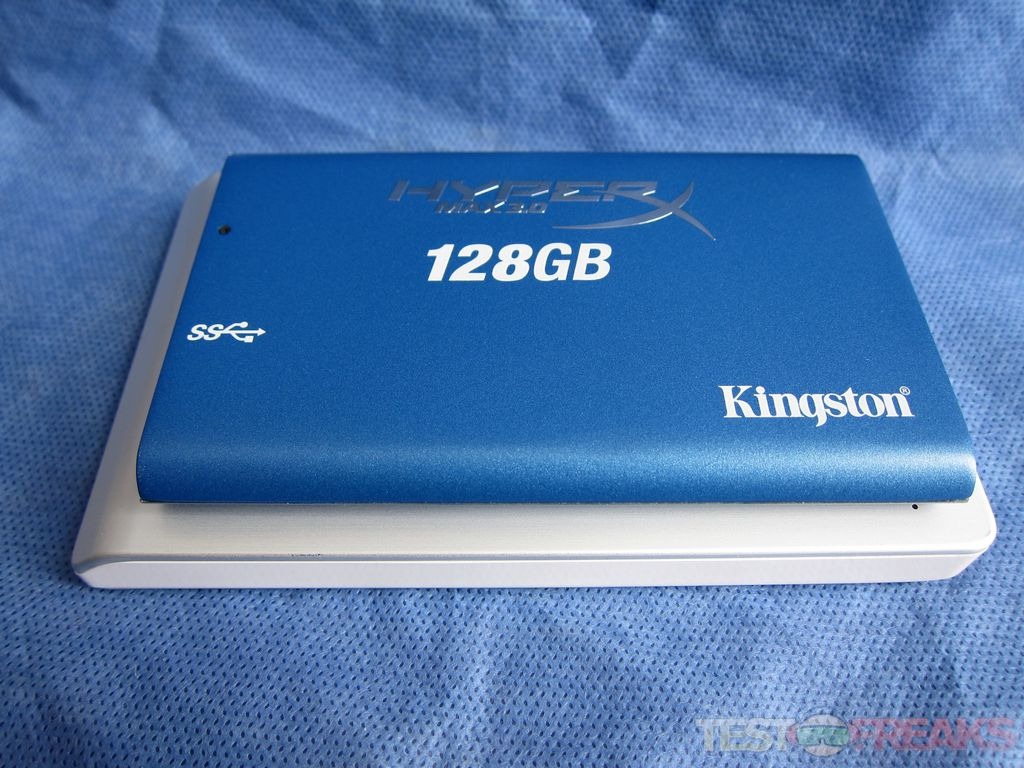

In terms of size, the HyperX MAX 3.0 is smaller than most 2.5 external hard drives as it is comprised of a SSD daughterboard instead of a 2.5” housing. dHere is a size comparison next to a Seagate FreeAgent Go drive.

HyperXMax15 HyperXMax16

Specifications:

HyperX MAX 3.0

HyperX performance for fast and durable file transfer.

HyperX MAX 3.0 is an external USB 3.0 drive designed to make file transfer and back up faster and easier. Its durable casing and solid-state Flash components make the drive damage-resistant. It’s ideal for professional photographers and videographers, who can quickly and easily back up their high-resolution images and video, or anyone on the go.

HyperX MAX 3.0 is an external USB 3.0 drive designed to make file transfer and back up faster and easier. Its durable casing and solid-state Flash components make the drive damage-resistant. It’s ideal for professional photographers and videographers, who can quickly and easily back up their high-resolution images and video, or anyone on the go.

Enthusiasts and performance users can transfer large files (e.g., HD video, RAW images, AutoCAD files) faster, as HyperX MAX 3.0 utilizes USB 3.0 speed and is up to ten times faster than USB 2.0.

HyperX MAX 3.0 is backed by a three-year warranty, 24/7 live tech support and legendary Kingston reliability.

Features/Benefits:
-USB-IF SuperSpeed-Certified
-No additional power required; utilizes USB BUS power
-Compliant with USB 3.0; compatible with USB 2.0
-No driver required
-Aluminum casing
-Portable
-Performance — high-speed data transfer and storage
-Silent — runs silently with no moving parts
-Shock-resistant — built with Flash components so no moving parts
-Reliable — more durable than a traditional external hard drive
-Standardized — complies with USB 3.0 specification standards
-Compatible with USB 2.0
-Easy — plug & play
-Guaranteed — three-year warranty

Specifications:
-Sequential Speed:
Read: up to 195MB/sec.
Write: up to 160MB/sec.

-Dimensions — 2.89" x 4.67" x 0.47" (73.49mm x 118.60mm x 12.00mm)
-Operating Shock — 1500G
-Power Consumption — 4.5W
-Dual LED blue for USB 3.0, green for USB 2.0

Accessories Included: USB 3.0 micro-B plug to USB 3.0 standard-A cable
Kingston Part Numbers: SHX100U3/128G

Plugging in the HyperX MAX 3.0 the first thing you’ll notice the drive capacity is 119 GB instead of the 128 GB capacity. Another surprise with this drive is the lack of included software. The HyperX MAX 3.0 arrives totally blank.

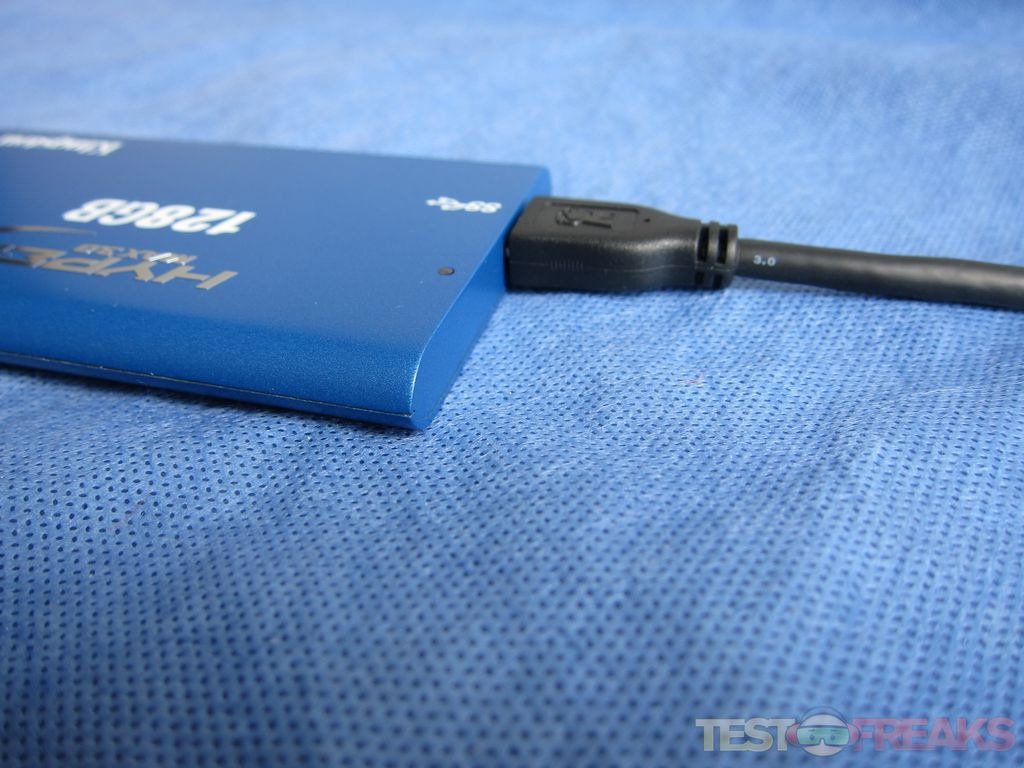

To get the max benefits of using the HyperX MAX 3.0 you’ll need to plug the drive into a USB 3.0 connection. For testing I used one of the latest ASUS motherboards – the Asus P8P67 PRO running an Intel Core i7 2600K.

HyperXMax17

For comparison the HyperX MAX 3.0 was tested against the Kingston DataTraveler Ultimate 3.0, and Seagate Black Armor USB 3.0 that is a mechanical 2.5” hard drive using a USB 3.0 interface.

Benchmarks were performed using Sandra 2010, HD Tune, CrystalDiskMark 3.0 and ATTO Disk Benchmark.

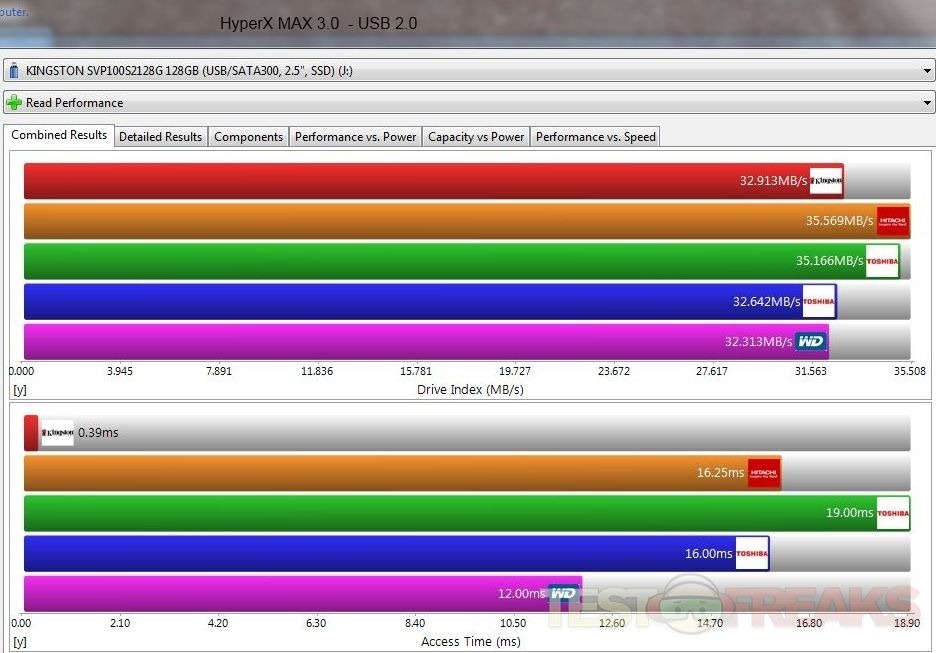

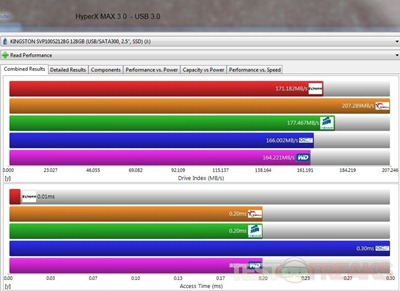

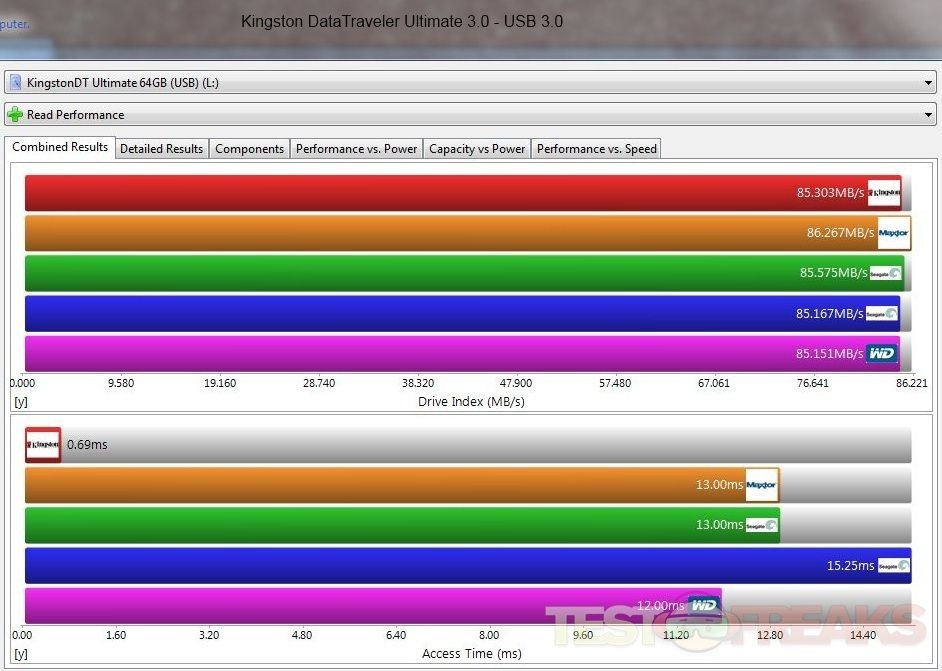

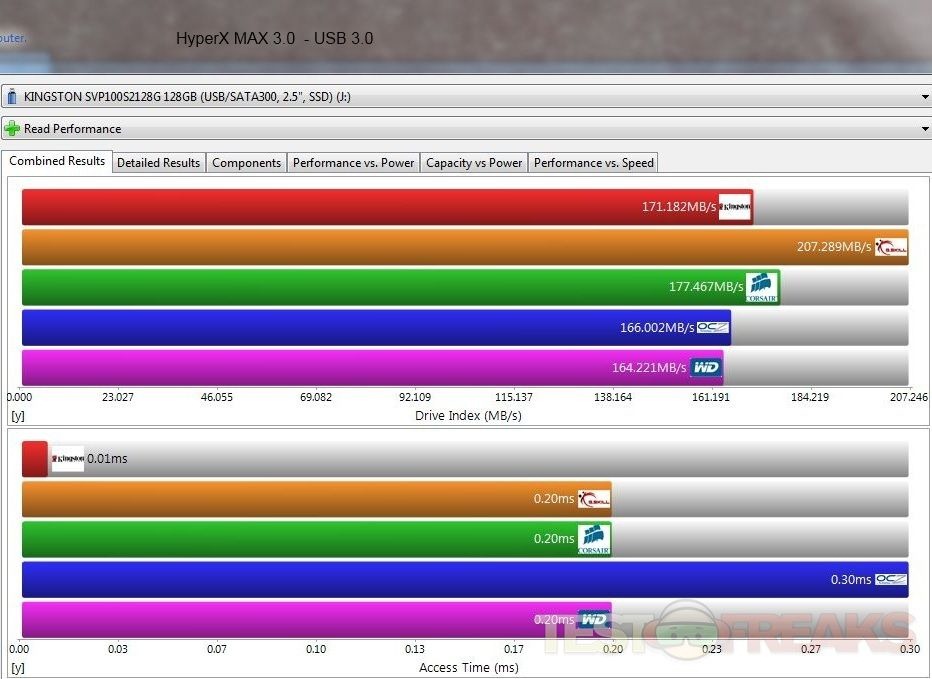

Here the HyperX MAX 3.0 was benchmarked at USB 2.0 and 3.0 speeds against the Kingston DataTraveler Ultimate 3.0 running USB 3.0. Sandra lists some comparable reference drives for comparison during each benchmark.

HyperXMax18

HyperXMax19

HyperXMax20

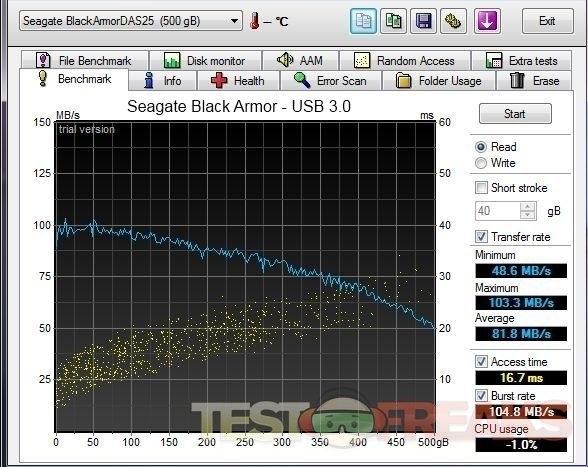

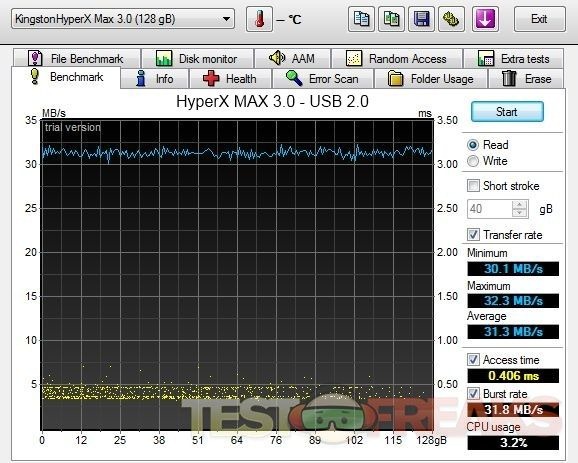

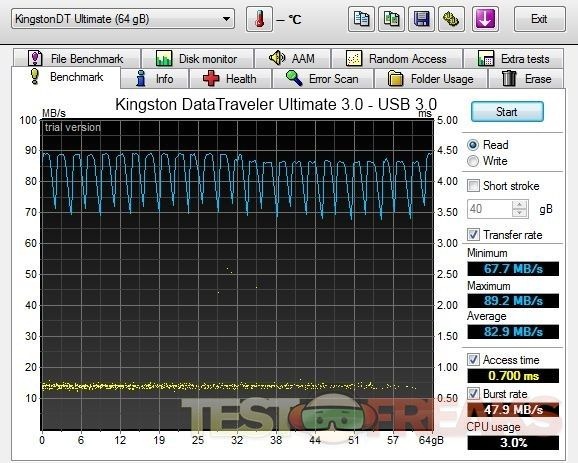

On HDTune we see the following results. The Kingston HyperX MAX 3.0 when operating at USB 3.0 speeds trounces the competition.

HyperXMax21 HyperXMax22 HyperXMax23 HyperXMax24

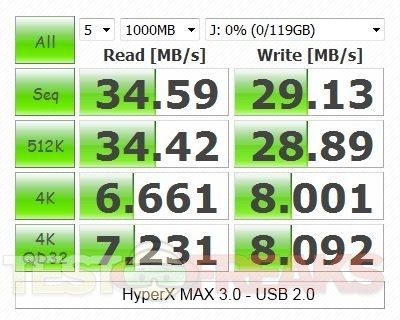

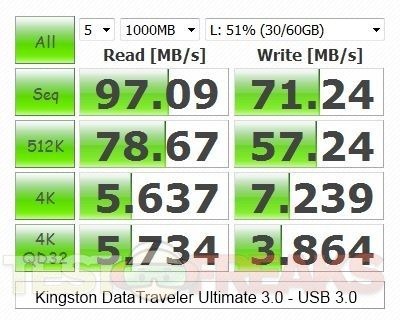

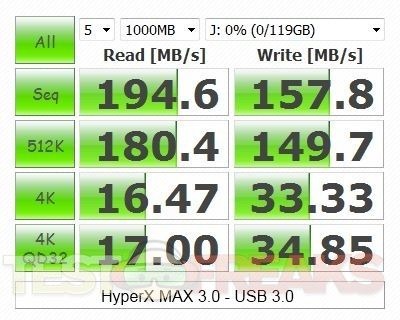

CrystalDiskMark shows similar results with the HyperX MAX 3.0 running against the portable Kingston USB 3.0 drive.

HyperXMax25 HyperXMax26 HyperXMax27

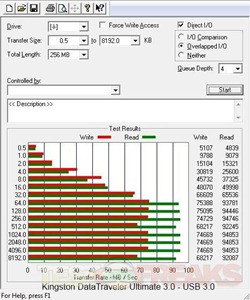

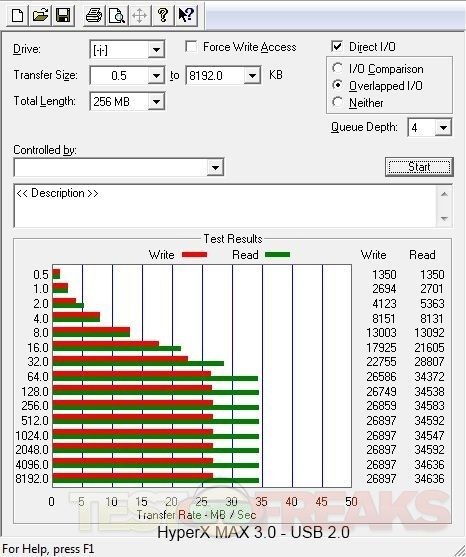

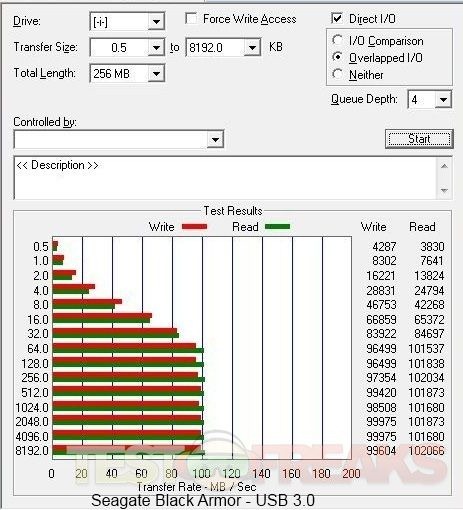

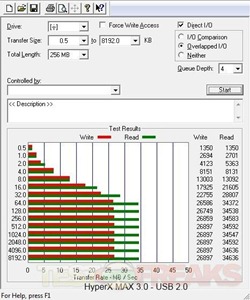

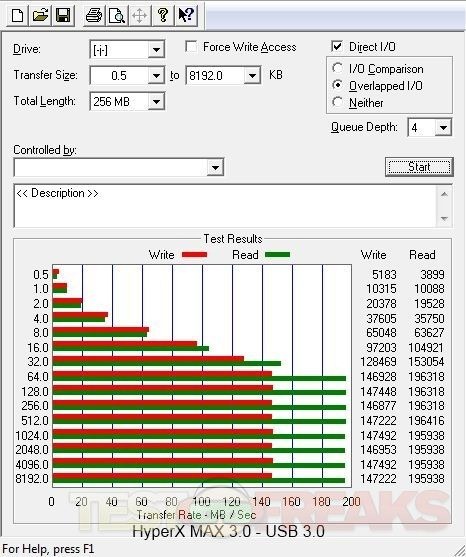

Finally on ATTO Disk Benchmark we see the same style of results with the HyperX MAX 3.0 coming out on top.

HyperXMax28 HyperXMax29 HyperXMax30 HyperXMax31

The HyperX MAX 3.0 came in as advertised with speeds consistently approaching 195MB/sec reads and 160MB/sec write speeds.

As USB 3.0 becomes more ubiquitous drives such as the HyperX MAX 3.0 will become more common. The lack of moving parts means you don’t have to worry about accidently dropping the drive and corrupting your drive. Of course I would not recommend purposely dropping the HyperX MAX 3.0.

Since the HyperX MAX 3.0 uses an SSD which connects via a SATA to USB 3.0 bridge there is no ability for the Windows OS to run TRIM. Fortunately the Kingston V+ series of SSDs use firmware level garbage collection, which means the HyperX MAX 3.0 should not suffer performance degradation with multiple writes. Of course doing a periodic secure erase of the drive should hurt and may restore maximal performance.


HyperXMax01 HyperXMax05 HyperXMax07 HyperXMax17

Conclusion:

Overall the HyperX MAX 3.0 is an impressive external drive. The drive is stylish in appearance and lightning fast when paired with a USB 3.0 connection. It is one of the fast external devices that I have encountered as a reviewer.

The main drawback on the HyperX MAX 3.0 is the price. Since this is a cutting edge external drive utilizing an SSD, the price is going to be high. Yet when checking the price of a comparable capacity Kingston V+ Series SSD on Newegg the prices between the external drive and the internal SSD are not too dissimilar.

Kingston’s HyperX MAX 3.0 provides internal SSD speeds and performance in a portable sleek package. If you deal with large files such as video or RAW files then this speedy external drive will be a huge time saver. Of course having a USB 3.0 capable PC is required as well.

If speedy file transfers are what you require then the Kingston HyperX MAX 3.0 is probably the best choice on the market.

10

Pros:
+Fast
+Did I mention fast??
+SSD inside
+USB 2.0 compatible
+Works on Macs
+No moving parts
+Shock resistant

Cons:
-Expensive
-Lack of included software

Grades:
Overall score-10-10
Design score-10-10
Performance score-10-10
