Multiple monitors, they’re a wonderful thing. I’ve gone from one, then to two and now I run four on my main computer and I love every minute of it. It allows you to just get so much more done with work, but it allows you to enjoy your entertainment as well. One small issue with running multiple monitors is the cost for multiple videos cards or a high end card with many outputs on it. Sure you can get less expensive cards, but it’s not worth it, at least I don’t think it is. Today for review I’ve got a new product from Cirago that allows you to connect three monitors to your computer using a single Displayport connection. It’s called the HydraDisplay X3 and it’s very simple to use, truly plug and play. You might think something like this would require a lot of power but it doesn’t it uses the power from a regular USB port only, so there’s no adapter needed to run it. So let’s check it out…


Not sure why I did a video unboxing of this product, but let’s not let it go to waste. I was playing around the Muvee creation software as well, so that’s why it has the funky introduction here..

The adapter comes in a small box, there’s pictures and information on it as one might expect.

display1 display2

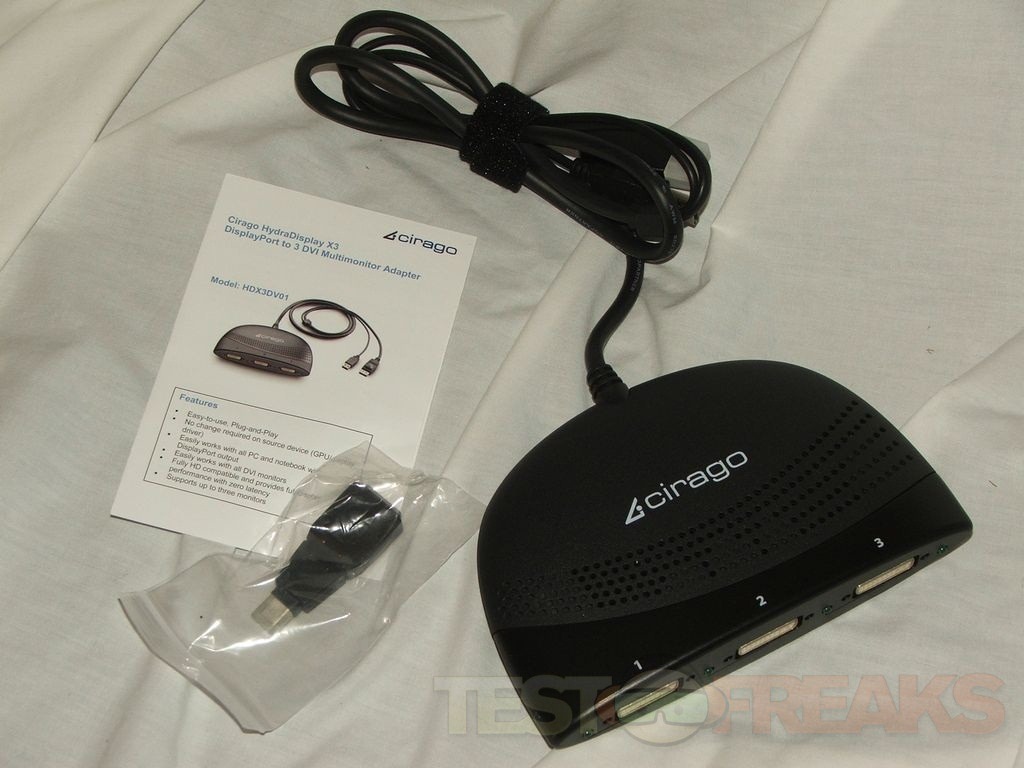

Inside you’ll find the adapter, a very brief manual and a displayport to mini-displayport adapter.

display3 display7

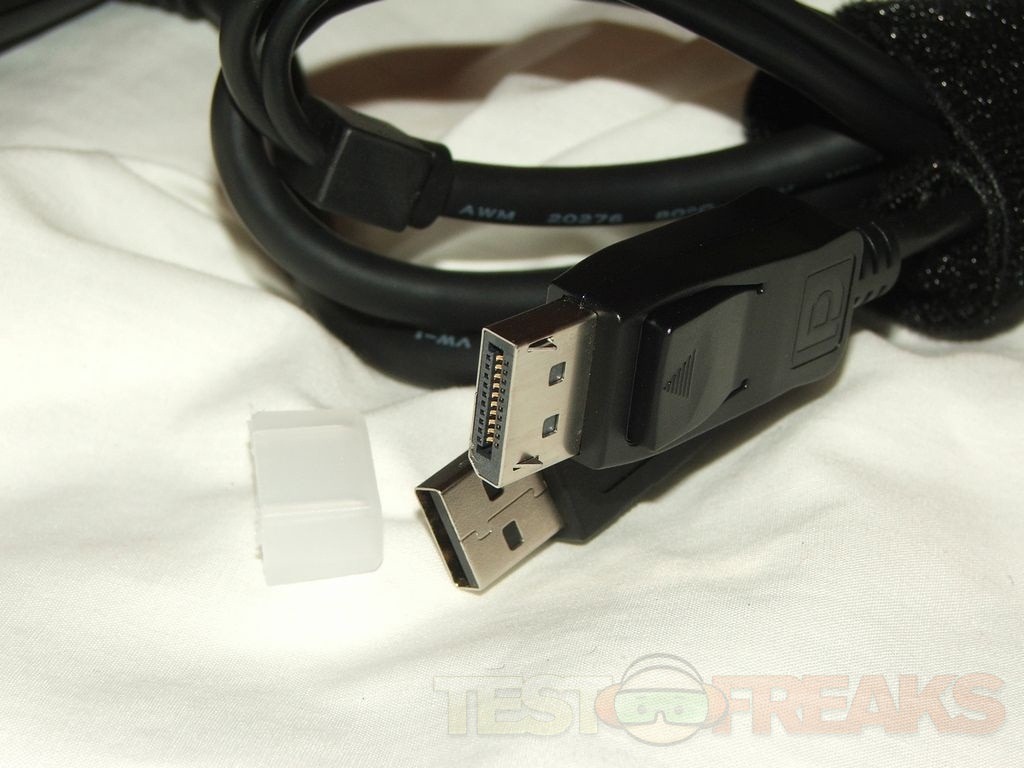

One of the great things about this product is that it requires no external power, it uses power from a USB port on your computer. This is a good thing as long as you’ve got enough free USB ports of course.

display6

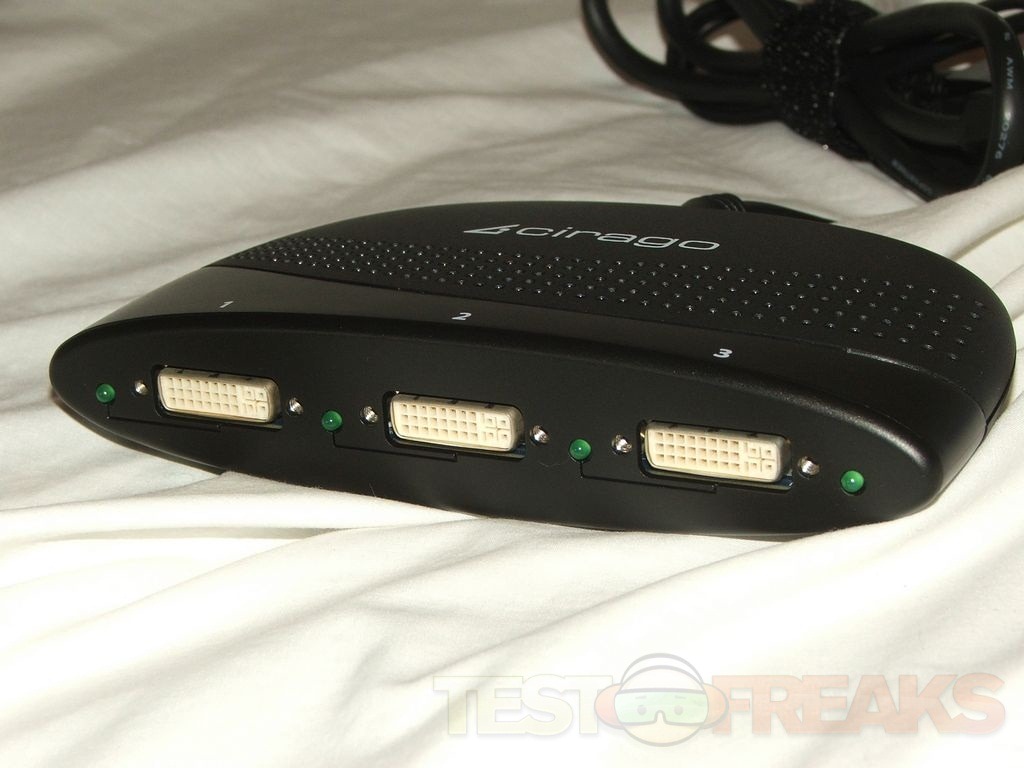

The unit itself has three DVI ports on the front with four LEDs on it, one each for the DVI ports and then one to indicate power. There are ventilation holes to help keep the unit cool.

display4

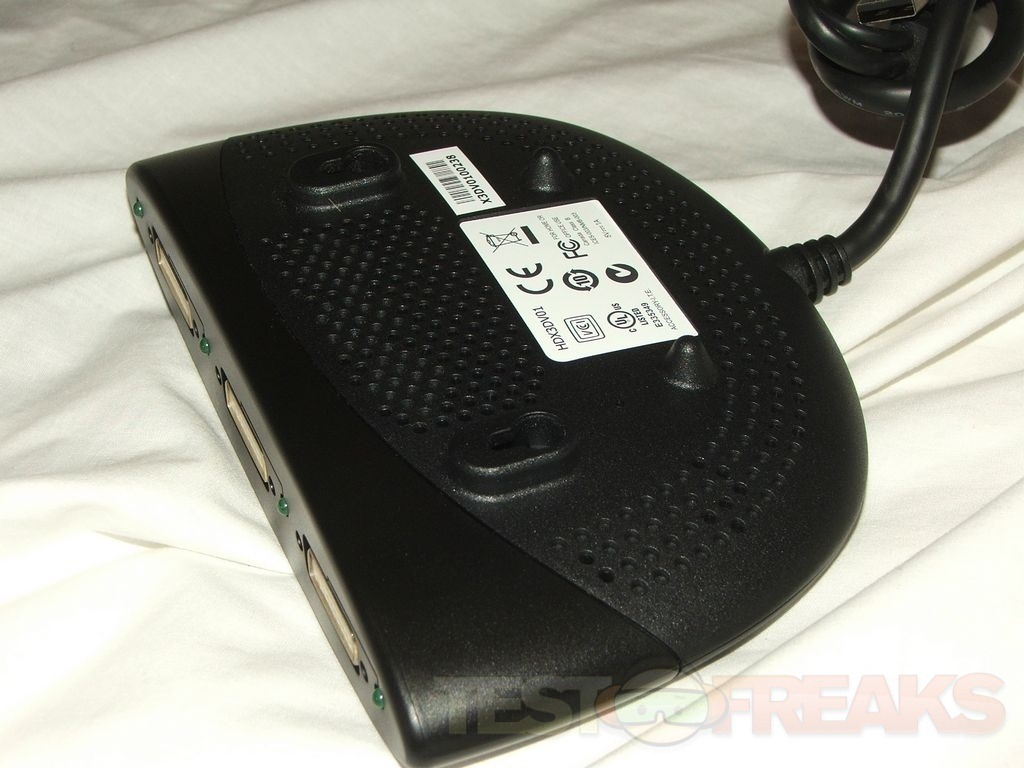

On the bottom you’ll find the ID label, more ventilation holes and feet. Those feet actually double as wall mounts so you can mount it on your wall if need be.

display5

The HydraDisplay X3 is made of plastic as most everything is anymore, but it feels sturdy and well made.

Specifications:

Cirago HydraDisplay X3 Displayport to 3 DVI Multimonitor Adapter

Model: HDXDV301

Features:
* Expands a single DisplayPort input to 3 DVI outputs on a Windows PC or Macintosh
* Support Desktop clone or Extended Desktop
* No driver installation required
* Virtually zero latency for full video performance
* No power adapter required

Description:
Interface: 1x DisplayPort 1.1a (in) / 3x DVI (out)
Output resolution: Up to 3840 x 1024 (3x 1280×1024)
Supported Monitor Frequency: 60 Hz
HDCP support: HDCP 1.3 capable
Connector cable: 1 DisplayPort cable, 45”
Power: DisplayPort powered

Operating system support : Windows XP, Vista, 7, Server 2003, Server 2008 Mac OS 10.4 and higher
Warranty: 1 year
Dimension: 6.5 x 4 x 1.5 in


Yesterday I reviewed the  HP Compaq 6006 Ultraslim computer and it has a Displayport on it so I used it to test the HydraDisplay X3.

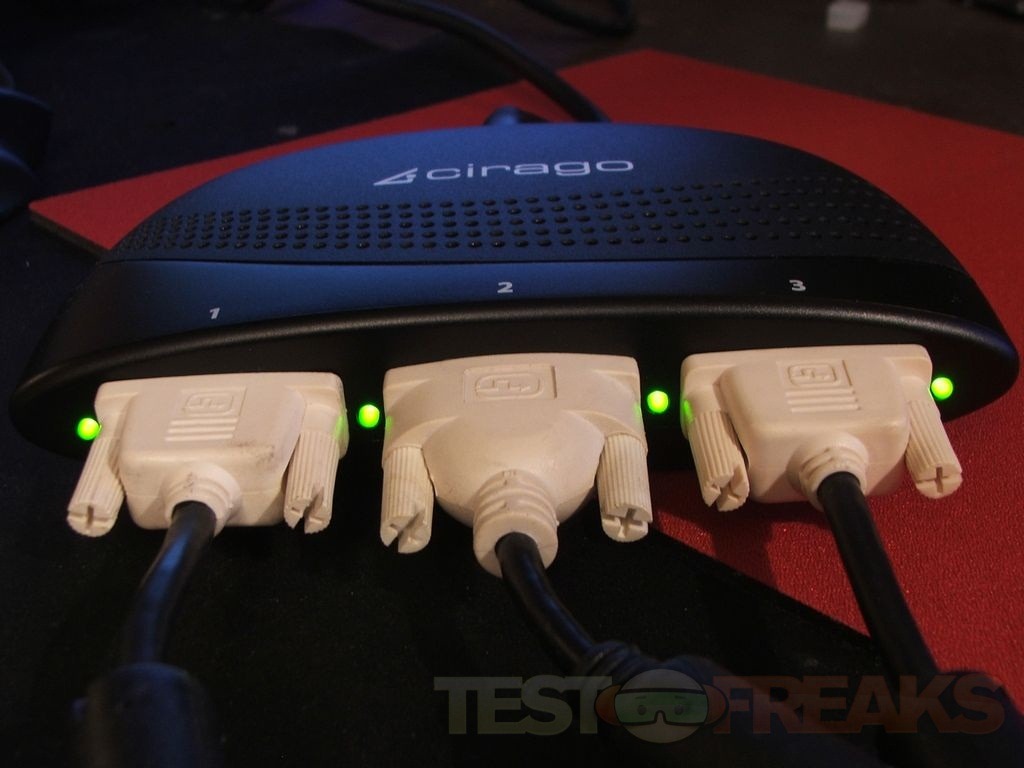

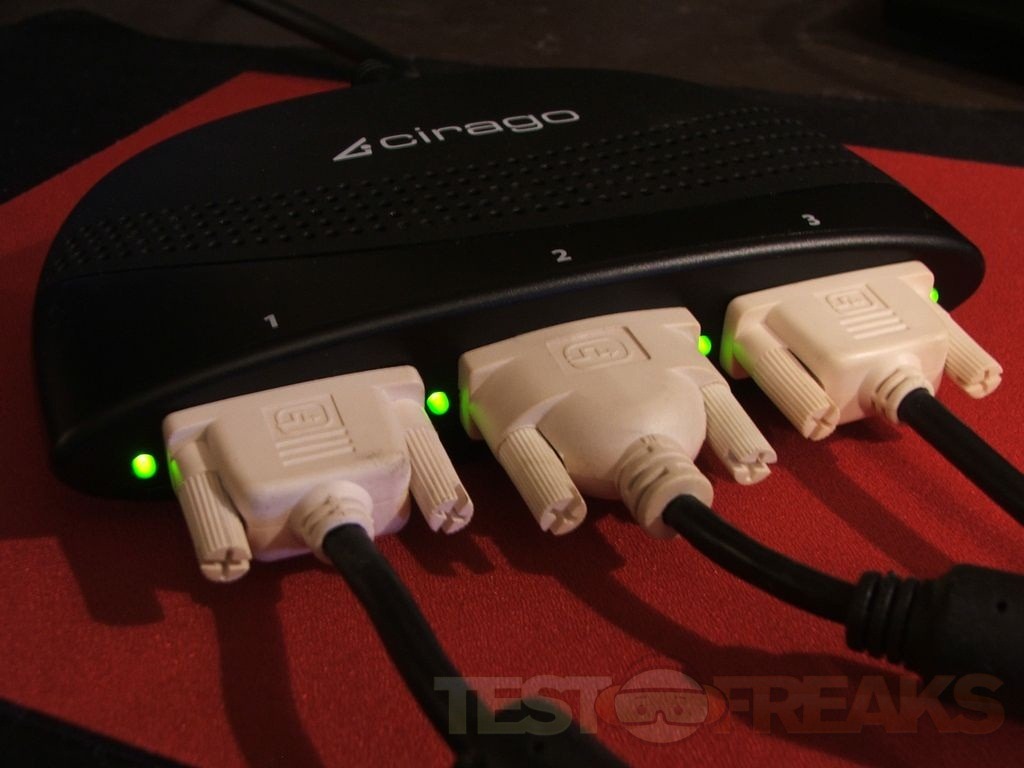

To hook it up just plug in the Displayport connection and the USB for power, then hook up your DVI monitors. Here you can see the LEDs lit up green indicating it’s working.

display8 display9

The are no drivers to install, Windows found it and installed them automatically in a few seconds.

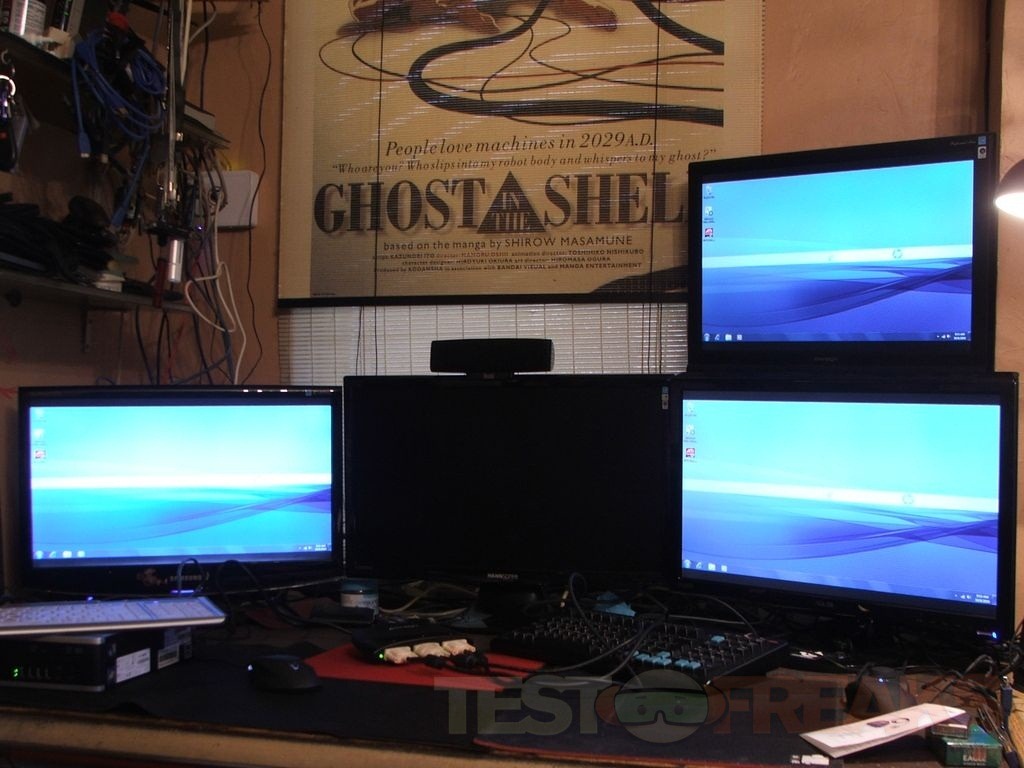

I’ve got four monitors on my main computer so I used three of those, three of them are DVI and one is actually HDMI only. I didn’t want to re-arrange my monitors so that’s why there’s a blank monitor in the middle it’s the HDMI one.

When I hooked it up it the desktop was cloned on all monitors i had to go in and change settings to get it that way i needed it.

display10

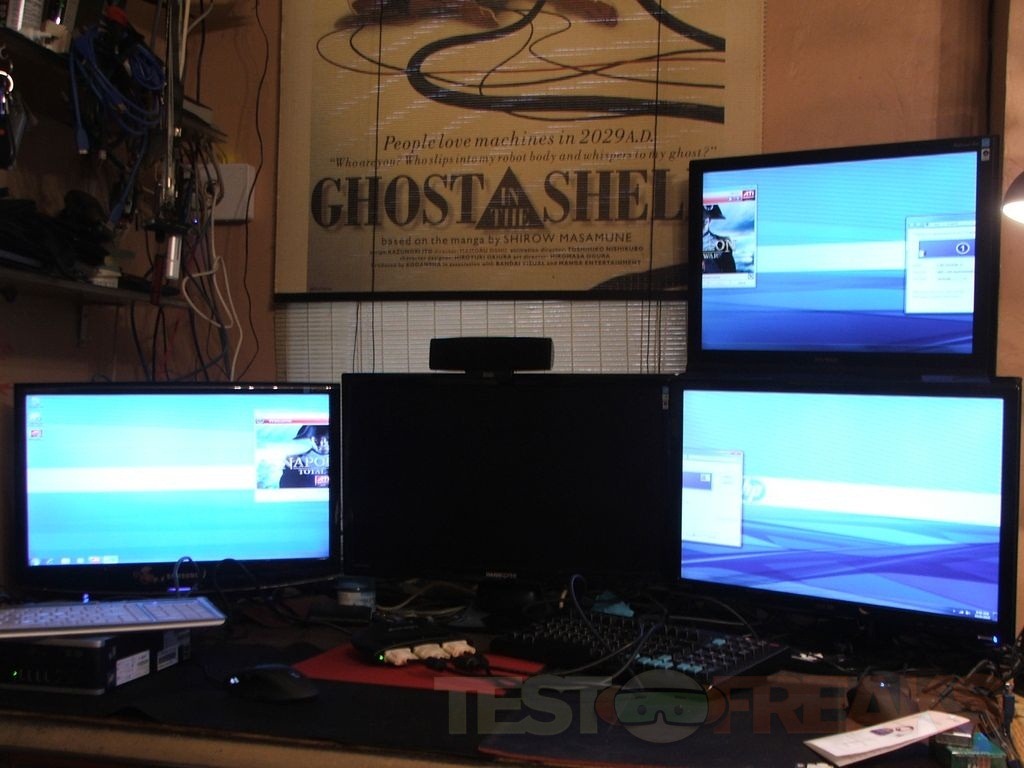

Technically you should arrange the monitors across the way you would like them displayed. You don’t have any way to move monitors around like you would with a real multi-monitor setup. It shows as just one big monitor. I changed the settings and set it to span across all three monitors instead of cloning them, this way you have all of that screen space to work with.

display11

Here I’m actually running two monitors at 1920×1080 resolution and one at 1680×1050, and it works. The manual though says you should have all of the same resolution, mixing them causes the display to look odd when you spread across on to the other.

It can be rather frustrating to get things that way you want them though, it took some time to get it setup and configured mainly because I had to install the Catalyst Control Center on the HP computer since it wasn’t there. I had to go in an figure things out for myself as the manual really doesn’t tell you anything at all, it basically just tells you to go into your computer settings and sort it out for yourself.

I didn’t notice any lag or flickering issues, everything seemed clear and looked great really.

I check over at NewEgg and this product sells for $190, which is a bit high, but I think it’s worth it because it’s rather simple to use and you don’t have to worry about opening up your computer and installing videos cards.


display1 display3 display4  display9

Conclusion:

The Cirago HydraDisplay X3 is simple and easy to use, it’s truly plug and play, nothing to install just plug it in and you’re ready to go. It couldn’t be easier really.

One of the best things about this product is the fact that it doesn’t require an external power supply, it uses USB power right from your computer. The cable is nice and long so you can place it in an out of the way place and you can even mount it on the wall if need be.

9

Pros:
+Very simple to use
+Powered by USB
+Wall mountable
+Includes adapter for mini-Displayport
+Long cable

Cons:
-Monitors should be same resolution
-Configuration can be frustrating

Grades:
Overall score-9-10
Design score-10-10
Performance score-9-10

To learn more about our review policy please visit this page HERE.

  • Anonymous

    This sorta thing had existed way earlier in the form of the Matrox Triplehead2go Displayport Edition … sure, Matrox gear is insanely expensive, but I’m living quite happily on a triple-monitor setup with an old fashioned Matrox Dualhead2go Digital Edition …

  • HickSticks

    You said: “You don’t have any way to move monitors around like you would with a real multi-monitor setup. It shows as just one big monitor.”

    Does this mean that when your task bar stretches across all three monitors and when you click maximize it opens across all through monitors?

  • http://twitter.com/MOOBER MOOBER

    Hi. I bought the Cirago Hydradisplay and cannot get it to work correctly. While it will show up as an extended desktop, my three ACER H223H monitors display the same mirrored image. Very frustrating. If I change the Acer resolutions to 3840×720 the displays behave correctly. But what good is that? Any set up advice?
