Corsair TX750W 750Watt Power Supply

DSCF8384

Corsair is very much known for it’s excellent performing memory,  but they’re recently moved into the power supply business and all over the place they’ve gotten rave reviews and praise about them, so apparently they’re very good.

Today I’ve got the Corsair TX750 750Watt Power supply for review and it features plenty of connections and power for most systems. the cables are sleeved nicely and I have to note that they are nice and long as well, it also features 80% efficiency and 99% Active PFC to round it out.

So read on to learn more

As usual we’ve got the unboxing up first:

Specifications:

Corsair TX750W 750Watt Power Supply

Advanced Technology, High Performance

Enthusiasts looking for the optimal in price performance PSU technology will find the Corsair TX650W/TX750W series of PSUs will meet even the most demanding of required specifications.

The Corsair TX650W/TX750W power supplies are engineered using advanced technology and components typically found with high performance power supplies. With design features such as a dedicated, single +12V rail offer the maximum compatibility with the latest system components. Energy efficient circuitry capable of delivering greater than 80% efficiency ratings across 20%, 50%, and 100% load conditions make the TX family of PSUs ideal for the value/quality conscious enthusiast. With a large 140mm (120mm on TX650W) diameter temperature-controlled fan that is ultra quiet, yet still more than sufficient to cool the internals of the system, reliability and stability are no longer worries for the gamer, overclocker or enthusiast and high-end system builder.

Corsair TX Series Features:

* Supports ATX12V v2.2 standard and older ATX12V 2.01 spec
* Ultra-quiet 120mm (140mm on TX750W) double ball-bearing fan delivers excellent airflow
* 80%+ energy efficiency at 20%, 50% and 100% load condition for less heat generation and lower energy bill
* 99% Active Power Factor Correction provides clean and reliable power to your system
* Universal AC input 90~264V automatically scans and detects the correct voltage
* Dedicated single +12V rail offers maximum compatibility with latest components
* Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components.

* High quality Japanese capacitors provide uncompromised performance and reliability.
* Extra long cables support full tower size chassis.
* TX750W Dimension: 5.9"(W) x 3.4"(H) X 6.3"(L);
* TX650W Dimension: 5.9"(W) x 3.4"(H) X 5.9"(L);
* MTBF: 100,000 Hours
* NVIDIA SLI-ready certified.

2

1

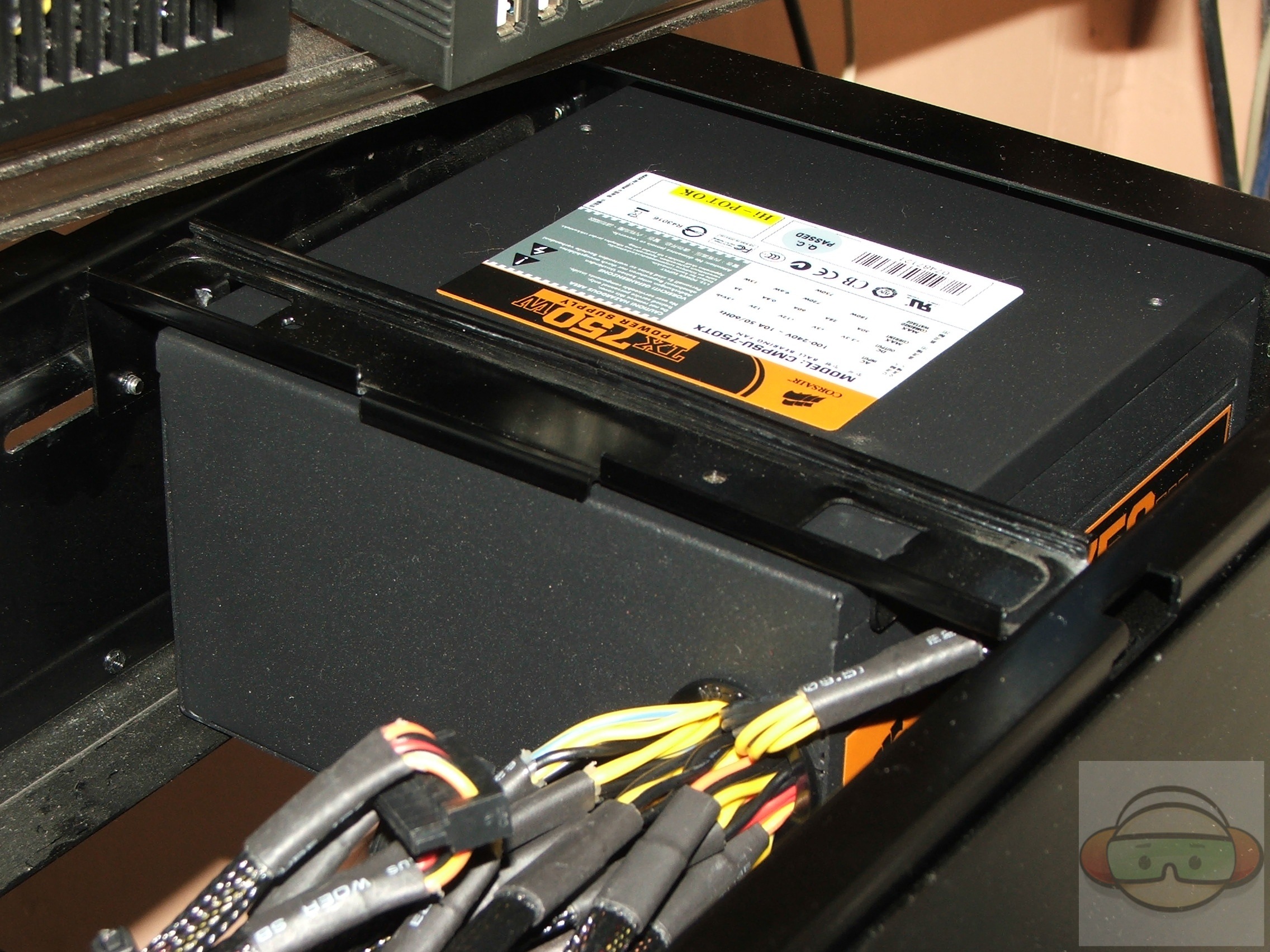

I had no problem installing the TX750W in my case as it’s about standard sized and the case I used had quite a bit of room for a power supply, the Ultra M998.
DSCF7252

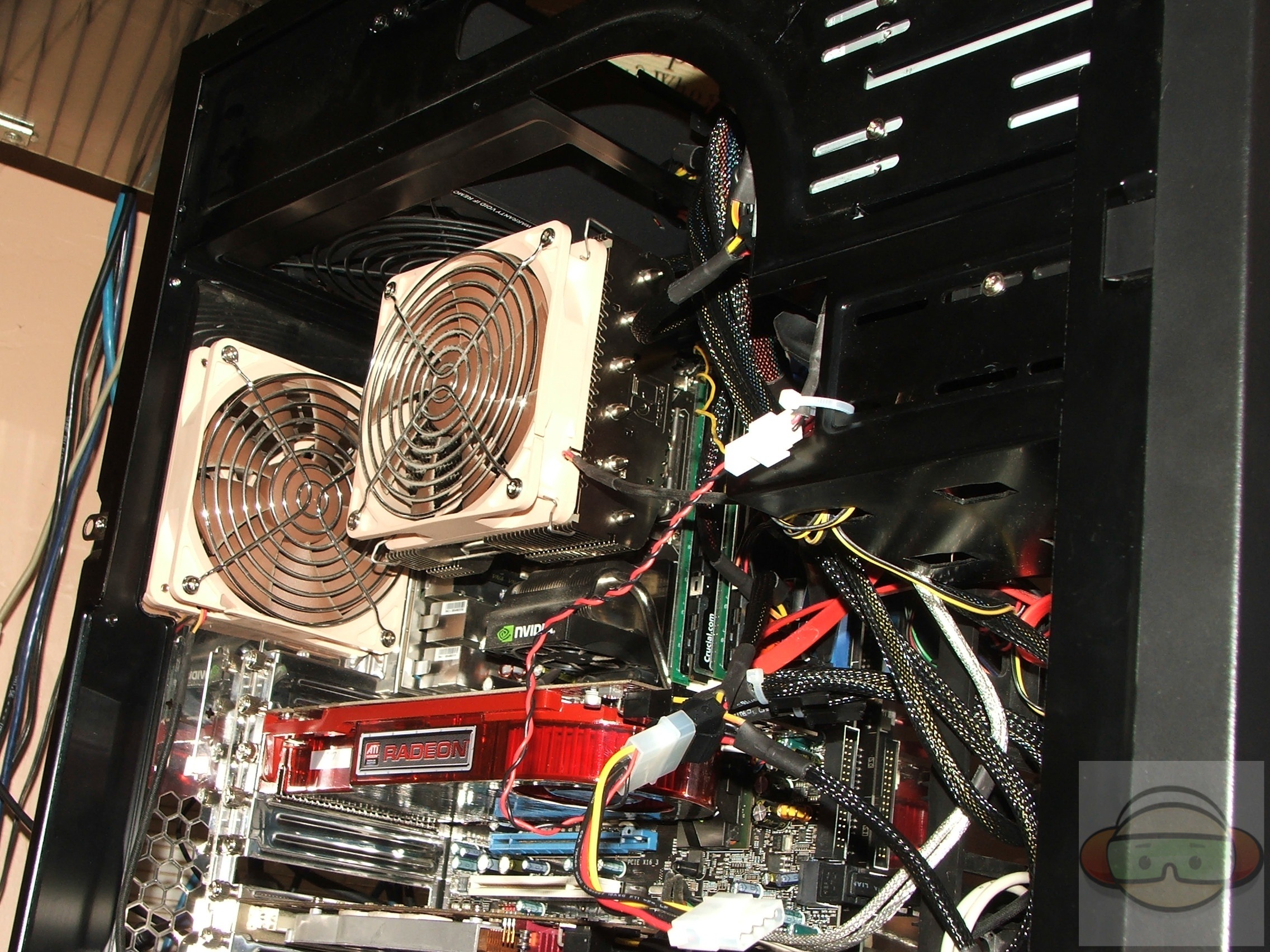

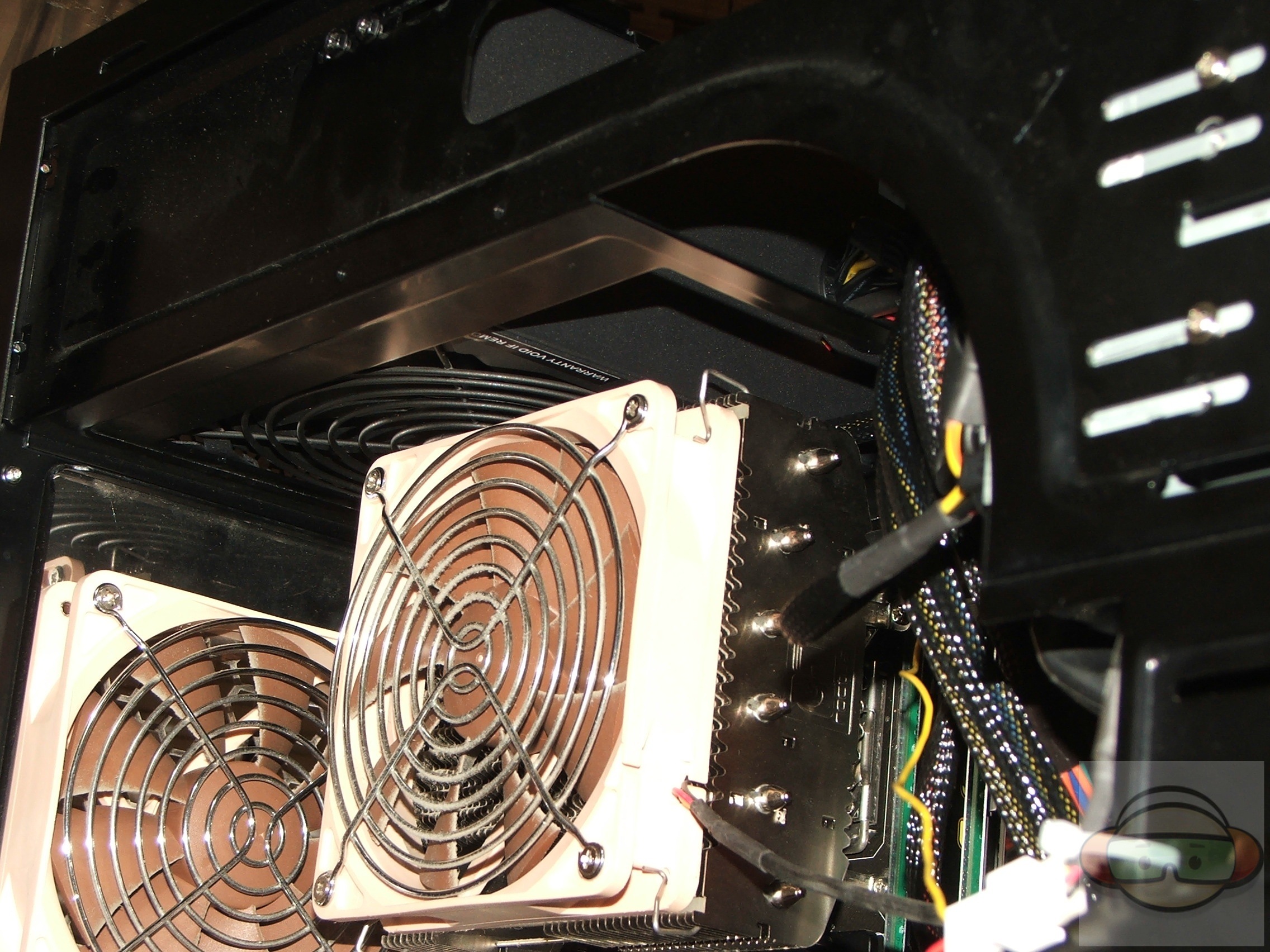

I did move everything over later on, and currently I’ve got everything in my Antec P182, the main reason I mention this is because the P182 is type of case that you mount the PSU on the bottom and my motherboard, an EVGA NF680i SLI, has the 12v connection on the top left corner, some power supplies have cables that are not long enough to reach through the back. The Corsair TX750W reached fine, I easily ran the 12v power connector and other on the back side of the motherboard with no problems at all.

My system consisted of:
EVGA Nf5680i SLI Motherboard
Intel C2Q6600 (Noctua NHC-12P with 120mm fan)
1x Diamond Radeon 4870 1gig Video Card
1x Connect3d X1800GTO Video Card
4x hard drives, 1x 500gig, 3x 200gig
2x DVD/RW/DL drives
2x 120mm case fans
1x 80mm case fan

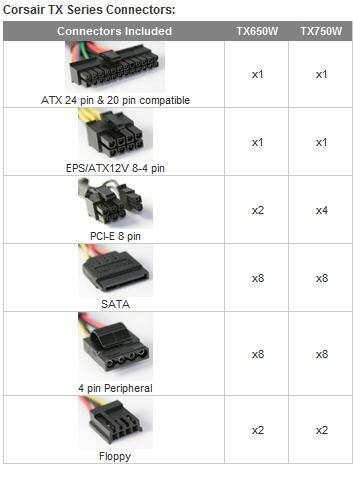

One thing very nice about the Corsair TX750W is that it comes with four PCIE connections, my system needs three, two for the 4870 and one for the X1800GTO, most power supplies these days only come with two PCIE connections.

So for testing I got out my trusty multimeter to test the 12, 3.3 and 5 volt rails, while this isn’t the optimal way to do things it does give us an idea of how well it works. I also had the PSU installed in my main system for over three weeks, and it got a nice workout I’m sure. I ran Orthos Stress Prime and 3dMark06 to get load on the system and checked the rails, I did this several times over the course of the three weeks and averaged out the results.

The tolerance or acceptable variance is 5% for all three rails which would be:
12v = 11.4v – 12.6v
5v = 4.75v – 5.25v
3.3v = 3.14v – 3.47v
Testing results:
IDLE:
3.3v = 3.38v
5v = 5.14v
12v = 12.10v

LOAD:
3.3v = 3.37v
5v = 5.14v
12v = 12.09v
As expected the rails dropped a bit under load, but not much at all, and the 12v rails stayed there with no fluctuations under load. All three rails are well within tolerances as well.
I should also note that the TX750W seems virtually silent, at least I didn’t hear it at all over the rest of the system, it added no additional noise, no matter how long I used it or how much load was placed on the system.

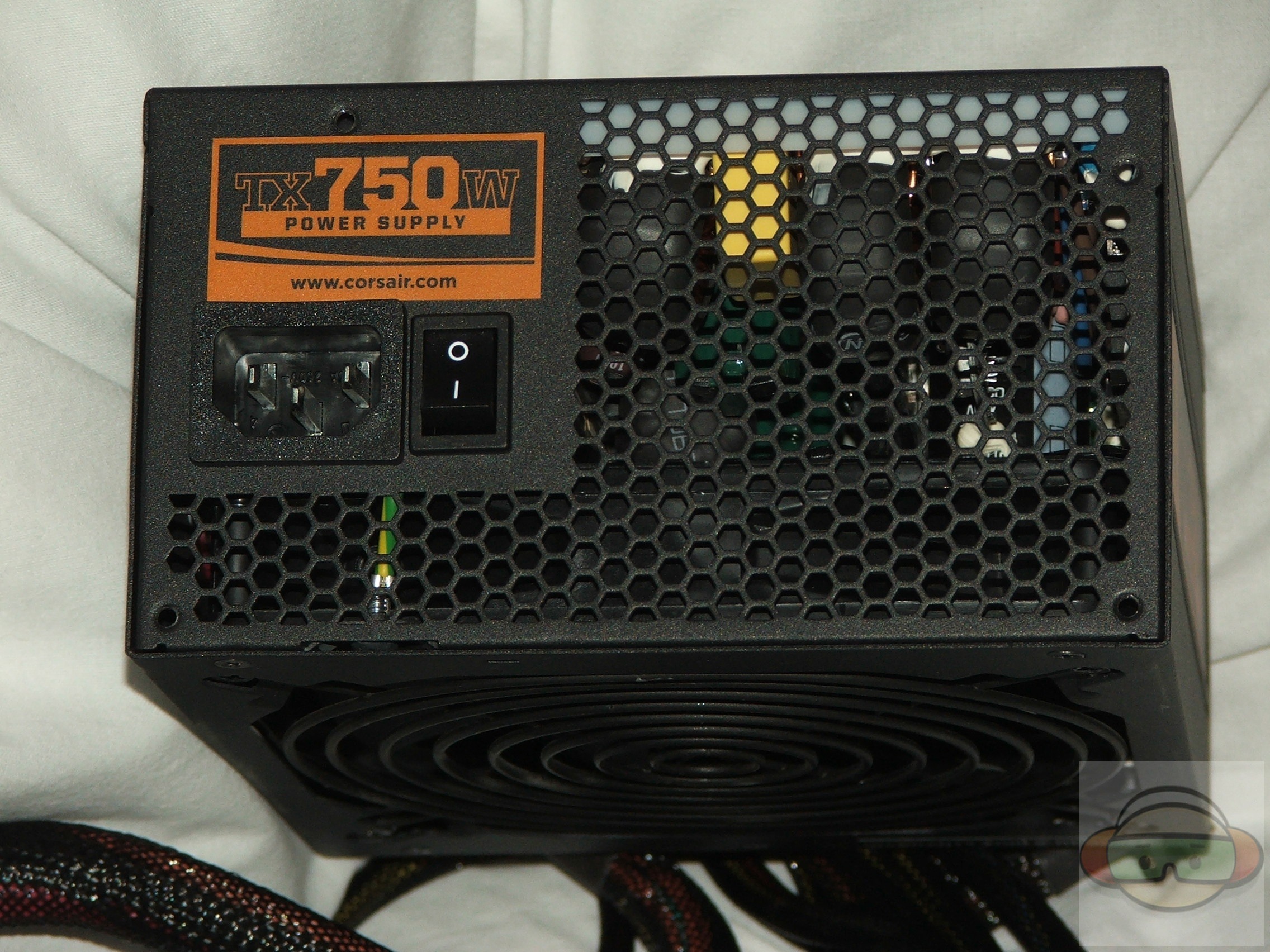

DSCF7207 DSCF7209  DSCF7254 DSCF7256 DSCF8384 DSCF8386 DSCF8387 DSCF8389

Conclusion:
As expected the Corsair TX750W performs very well under load, and is very stable, it’s an all around great PSU really.

The extra long cables are great for large cases and to even help route them to keep them out of the way, the fan is silent as well which is something most anyone can appreciate.

Pros:
Quiet
Stable
Lots of connections
Long cabling

Cons:
None really

Grades:
Overall score-10-10
Design score-10-10
Performance score-10-10
